Description

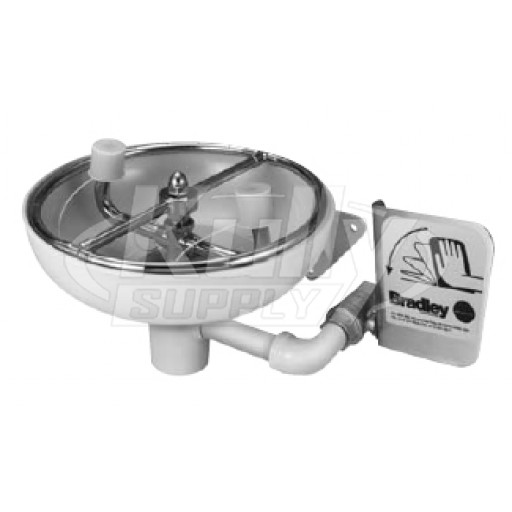

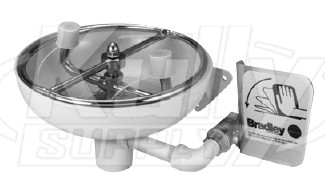

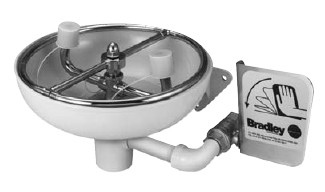

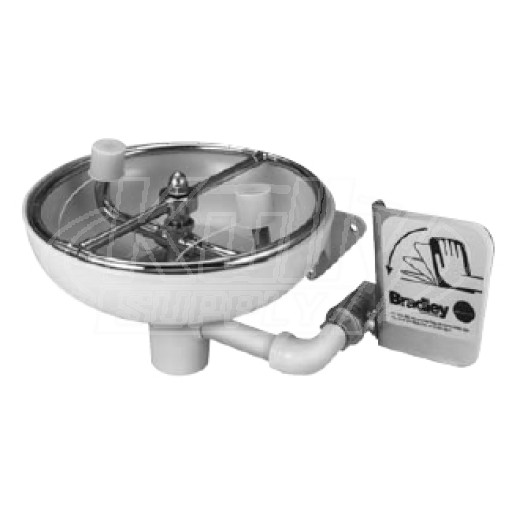

Eyewash Bowl
10” (254mm) diameter impact-resistant stainless steel.
Standard Sprayhead Assembly
Chrome-plated brass sprayhead assembly with twin, soft flow, eyewash heads and protective sprayhead covers. The integral flow control assures safe, steady flow under varying water supply conditions from 30-90 PSI.
Face Spray Ring
Stainless steel circular spray ring provides supplemental face spray. Flow control assures adequate flow from eyewash nozzles and face spray ring from 30-90 PSI.
Valve
Stainless steel 1/2” IPS stay-open ball valve. Hand operated by a large, highly visible safety stainless steel push handle.
Pipe and Fittings
1/2” stainless steel protected with BRADTECT™ safety yellow coating.
Wall Bracket
Stainless steel protected with BRADTECT™ safety yellow coating. Three clearance holes for wall mounting bracket; bolts by others.
Waste
1-1/4” drain fitting and tailpiece furnished.
Water Supply
1/2” IPS.
Manufacturer Info
Bradley is the industry’s leading manufacturer of commercial plumbing fixtures and washroom accessories. Bradley boasts the greatest depth and breadth of commercial plumbing products in the world.
