Description
- Activation Utilizes Capacitive Sensing Technology
- Omni-Directional Detection Zone Delivers Superior Customer Satisfaction
- ADA Compliant Hands-free Activation
- 6 VDC Control Powered by (4) “D”-cell Alkaline Batteries (included)
- Optional 100-120 VAC Plug-in Adapter
- Optional 100-120 VAC 6 Unit Plug-in Adapter
- Includes 4” Anti-Rotational Trimplate
Component Operation
6VDC battery-powered control powered by (4) “D”-cell alkaline batteries (included). Average battery life: 500,000 activations. Optional 100-120 VAC plug-in adapters are available for both single and multi-faucet applications.
Flow Control/Rate
Operating water pressure range is 20-80 psi. Flow regulator keeps flow rate constant at all pressures. The flow is laminar at a rate of 1.5 gpm.
Body
Chrome plated solid brass body. Centershank or 4” centerset mounting (with included trimplate). 8” trimplate available separately.
Standard Equipment

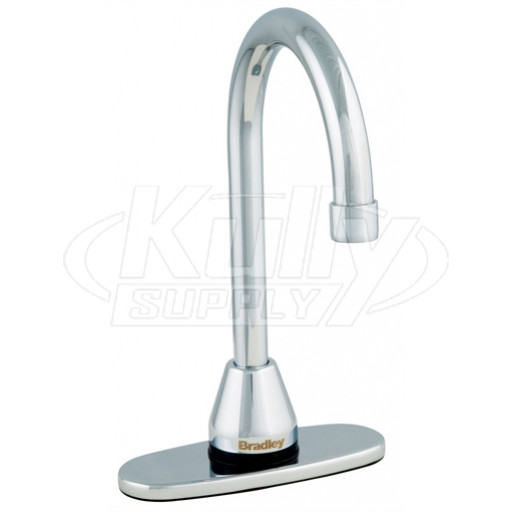

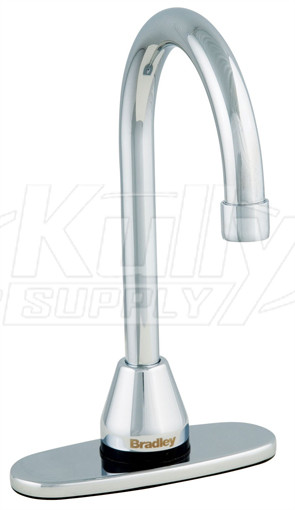

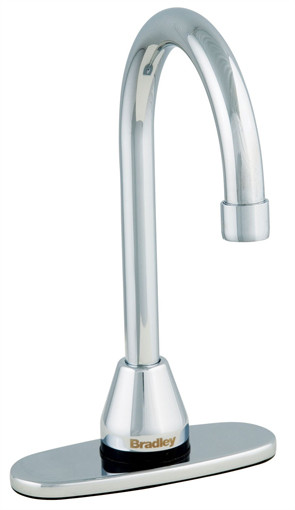

The Aerada 1200 Series CS gooseneck faucet creates an omni-directional detection zone utilizing capacitive sensing technology. The capacitive sensing field triggers faucet activation only when a significant change in the capacitive field occurs. Only human presence will create a significant change in the capacitive field. As such, inanimate objects will not trigger faucet activation. The faucet is unaffected by varying skin tones, other infrared presence and soap scum build-up.
Valve
The electronically activated motor driven valve provides reliable performance since there are few moving parts. Valve includes an in-line filter to trap debris and is unaffected by most chemicals and minerals found in municipal water supplies. Valve features a factory-set maximum water run-on duration of 15 seconds. Valve control module features a manual override control for applications requiring periodic flushing of the water lines. The valve and electronics are enclosed in a water-resistant housing mounted below the fixture.
Manufacturer Info
Bradley is the industry’s leading manufacturer of commercial plumbing fixtures and washroom accessories. Bradley boasts the greatest depth and breadth of commercial plumbing products in the world.
