Description

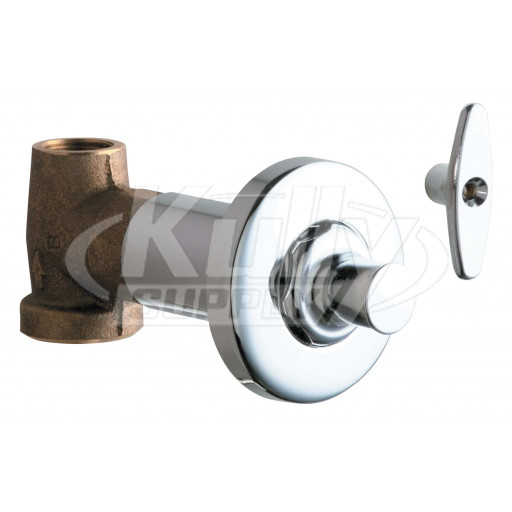

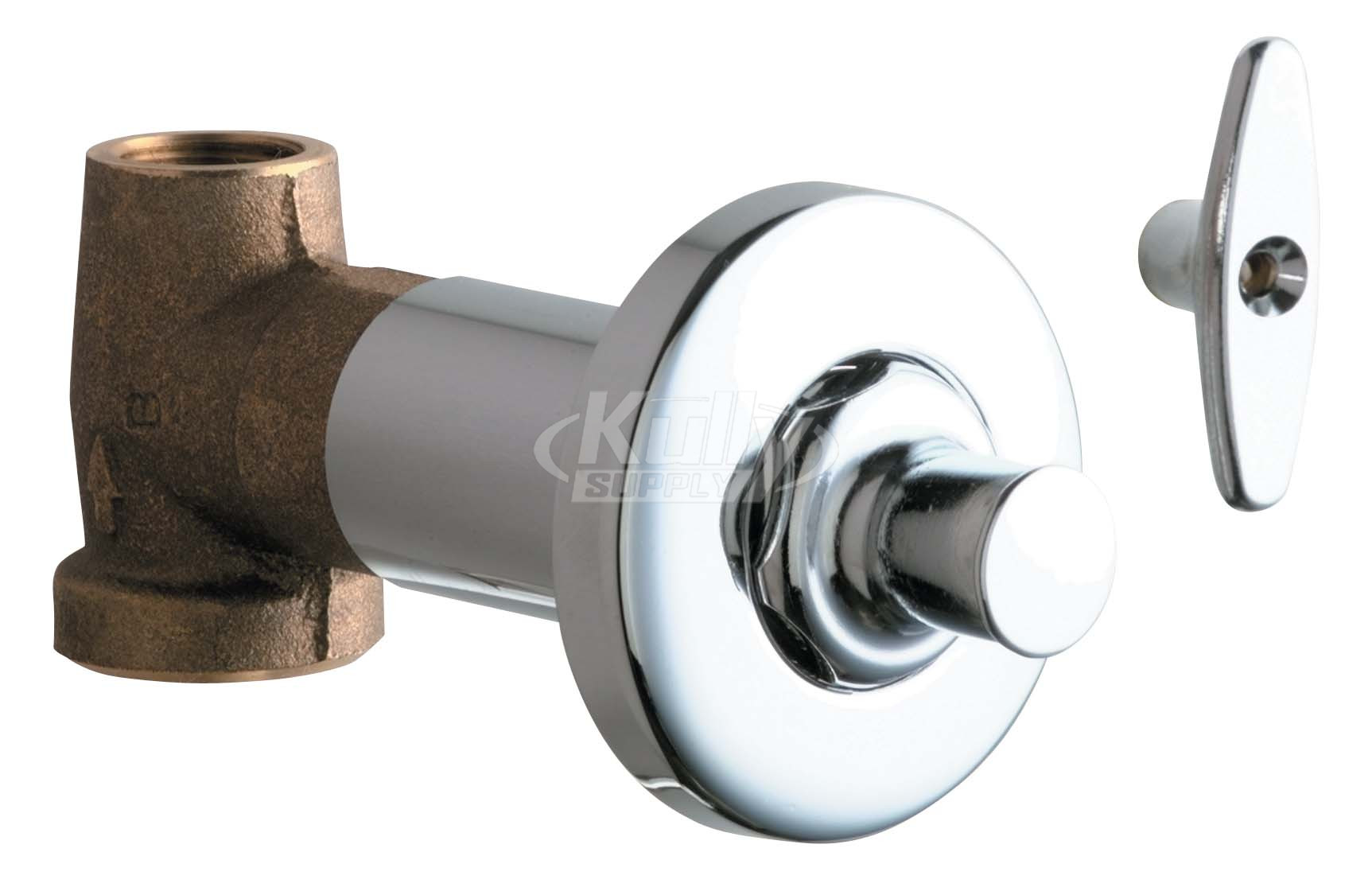

Chicago Faucets No. 1771-ABCP, polished chrome plated solid brass body construction. Loose key handle. Loose key cap with plug button. Slow compression renewable cartridge that closes with water presssure with square tapered broach feature to help facilitate handle removal. 1/2” NPT female inlet and 1/2” NPT female outlet. Wall flange. This product is tested and certified to industry standards: ASME A112.18.1, NSF 61 Sec. 9, and CSA B125.
Product Type
Remote Valves Mounted Concealed Straight Valve
Features & Specifications
- Concealed Straight Valve
- 2 1/4” Tee Handle
- Slow Compression Operating Cartridge
- 1/2” NPT Female Thread Inlet
Performance Specifications
- Rating Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140º
Warranty
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
Codes & Standards
- ASME A112.18.1M
- CSA B125.1
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
