Description

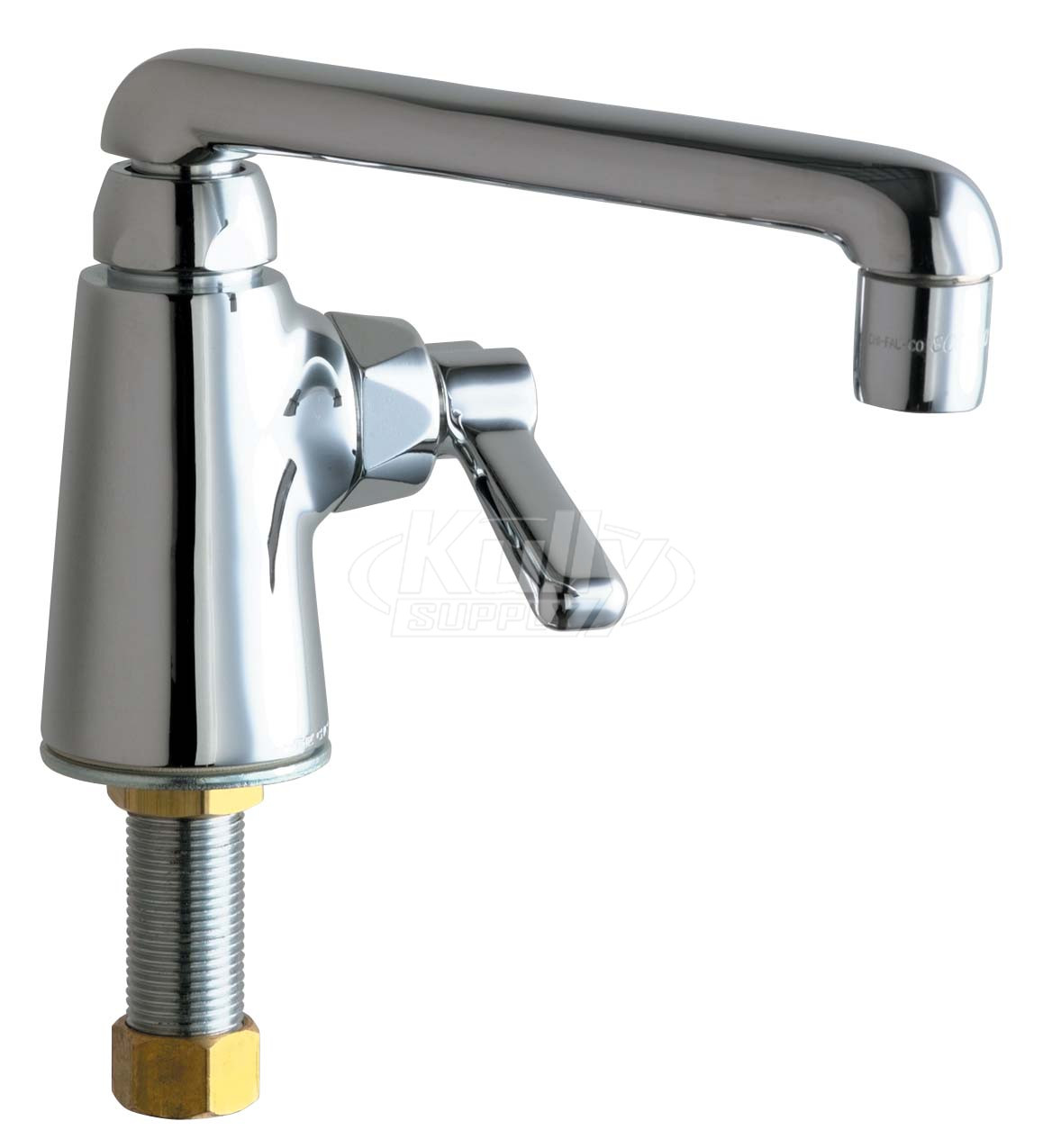

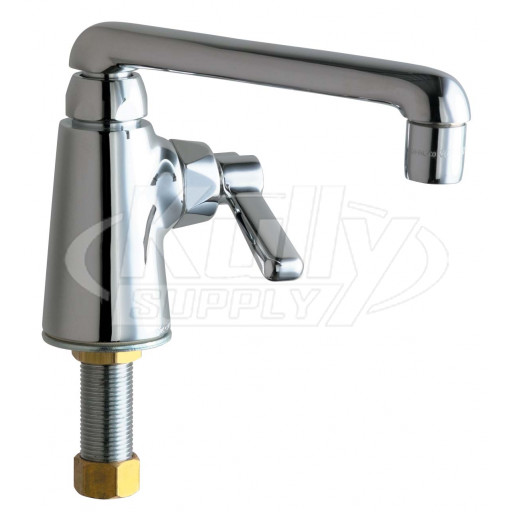

Chicago Faucets No. 349-ABCP, polished chrome plated solid brass construction with integral shank. 6” cast swing spout. 2.2 GPM pressure compensating aerator outlet, 2-3/8” metal lever handle with eight-point tapered broach and secured, color-coded blue index button. Quaturn™ quarter-turn renewable compression cartridge designed to close with water pressure, with square tapered broach feature to help facilitate handle removal. Inlet shank contains standard 1/2” NPSM threaded inlet with coupling nut for connection to 3/8” or 1/2” standard lavatory riser. All mounting hardware is included for standard lavatory installations. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1, NSF 61 Sec. 9, and CSA B125.
Product Type
Deck Mounted Single Supply Sink Faucet
Features & Specifications
- Single Hole
- 6” Swing S Type Cast Brass Spout
- 2.2 GPM (8.3 L/min) Aerator
- 2 3/8” Lever Handle
- Quaturn Compression Operating Cartridge
- 1/2” NPSM Supply Inlet with Coupling Nut for 3/8” or 1/2” Flexible Riser
Performance Specification
- Rating Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140ºF
Warranty
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
Codes & Standards
- ASME A112.18.1
- CSA B125.1
- Certified to NSF/ANSI 61, Section 9 by CSA
- ADA ANSI/ICC A117.1
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
