Description

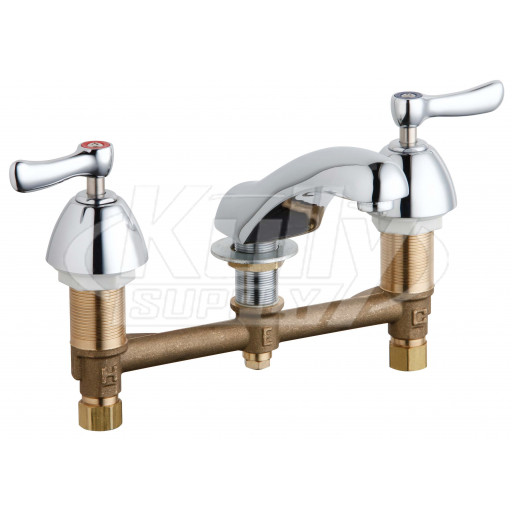

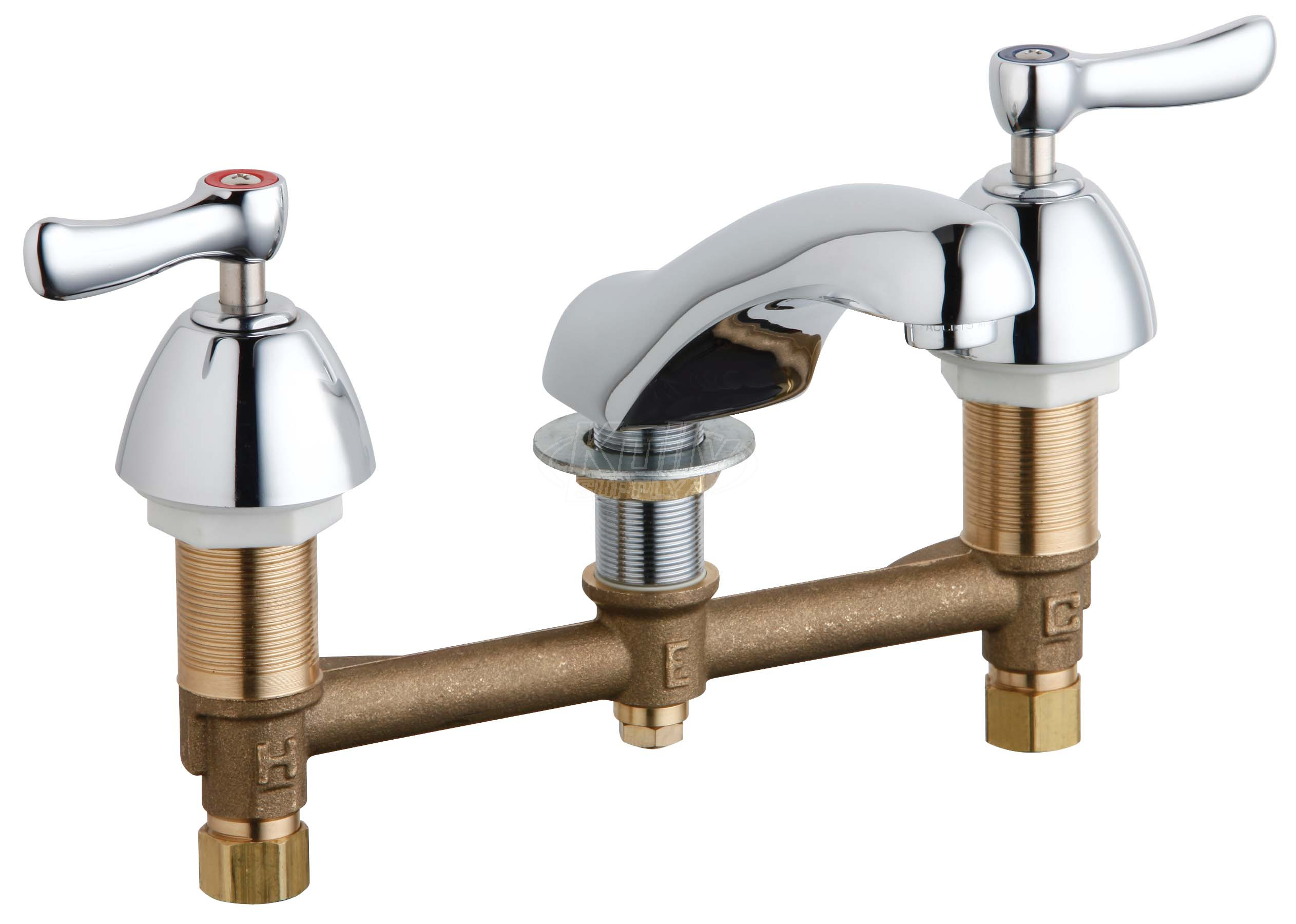

Chicago Faucets No. 404-ABCP, polished chrome plated solid brass body and spout. 5” C-C spout. 2.2 GPM pressure compensating aerator outlet. 2-3/8” Curved metal handles with eight-point tapered broach, secured, color-coded index buttons. Quaturn™ quarter-turn renewable compression cartridge designed to close with water pressure, with square tapered broach feature to help facilitate handle removal. 8” rigid valve body centers with 1/2” NPSM threaded inlets with coupling nuts for connection to 3/8” or 1/2” standard avatory risers. Mounting hardware included. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1, NSF 61 Sec. 9, and CSA B125.
Product Type
Concealed Lavatory Sink Faucet
Features & Specifications
- 5” C-C Rigid Cast Brass Spout
- 2.2 GPM (8.3 L/min) Pressure Compensating Softflo® Aerator
- 2 3/8” Metal Curved Lever Handles with Secured Red and Blue Service Buttons
- Quaturn™ Operating Cartridges
- 1/2” NPSM Supply Inlets with Coupling Nut for 3/8” or 1/2” Flexible Riser
Performance Specification
- Rating Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140°F
Warranty
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
Compliant To
- ASME A112.18.1M
- CSA B125.1
- NSF 61, Section 9
- ADA ANSI/ICC A117.1
