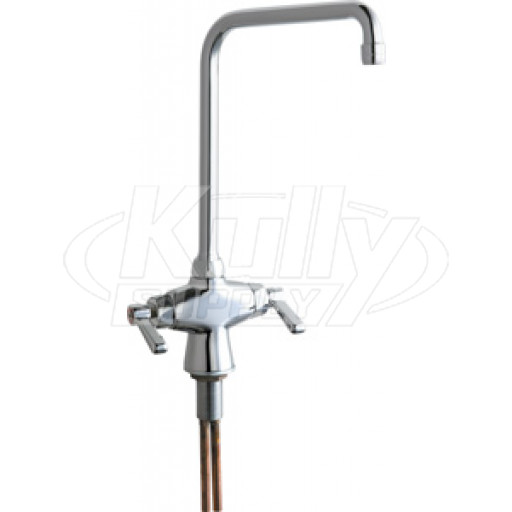

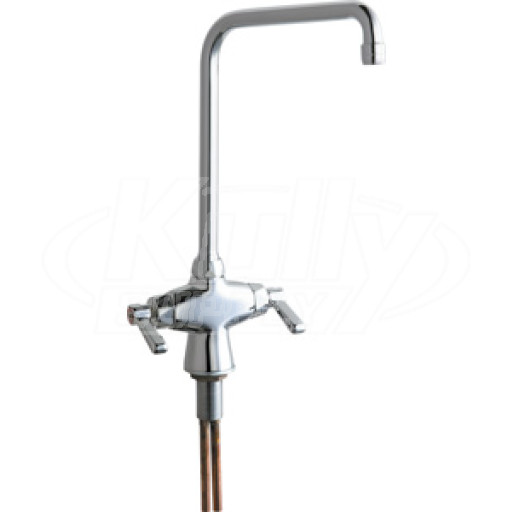

Chicago 50-HA8ABCP Hot and Cold Water Mixing Sink Faucet

Chicago 50-HA8ABCP Hot and Cold Water Mixing Sink Faucet

Item #: 161080
|
Model: 50-HA8ABCP
|
Manufacturer: Chicago

If you are looking to find Chicago products quickly and easily, you’ve come to the right place. This Chicago 50-HA8ABCP Hot and Cold Water Mixing Sink Faucet is a direct replacement product manufactured by Chicago. Order this Chicago 50-HA8ABCP today and you will have your Chicago project completed in no time at all.

Deck Mount – Single Hole
8” Hi-Rise Spout (HA8A)
2-3/8” Lever Handles
Quaturn Cartridges

This Item Typically Ships in 1-2 Weeks

List Price: $511.09 $485.54 You Save 5%

Product Downloads

50-HA8ABCP-spec

(Size: 383.7 KB)

Product Description
Specifications
Reviews (0)
Questions (0)

Product Description

Description

Chicago Faucets No. 50-HA8ABCP polished chrome plated solid brass construction. 8” center to center rigid / swing field convertable high arch spout. 2.2 GPM (8.3 L/min) pressure compensating Softflo aerator. 2 3/8” metal lever handle(s) with eight point tapered broach and secured blue and red buttons. Quaturn™ rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square tapered stem. Integral inlet shank(s) contains standard 3/8” O.D. Copper supply tubes. Mounting hardware included. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1M, CSA B125.1, and Certified to NSF/ANSI 61, Section 9 by CSA.

Product Type

Deck mounted single hole faucet

Features & Specifications

Polished chrome plated finish
Solid brass body construction
8” C-C high rise swing spout, catalog #HA8A
2.2 GPM (8.3 L/min) pressure compensating aerator outlet, catalog #E3
2 3/8” lever metal handles with eight point tapered broach and secured color coded index buttons, catalog #369
Quaturn™ quarter-turn renewable compression cartridge that closes with water pressure, with tapered square broach to facilitate handle removal, catalog #1-100XT and #1-099XT
3/8” o.D. copper supply tubes
Mounting hardware included

Performance Specification

rated operating Pressure: 20-125 PSI
rated operating Temperature: 40-140° F

Warranty

Lifetime Limited Faucet Warranty
5-year Limited Cartridge Warranty
1-year Limited Finish Warranty

Compliant To

ASME A112.18.1M
NSF 61, Sec. 9
CSA B125
ADA ANSI/ICC A117.1

Manufacturer Info

The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
