Description

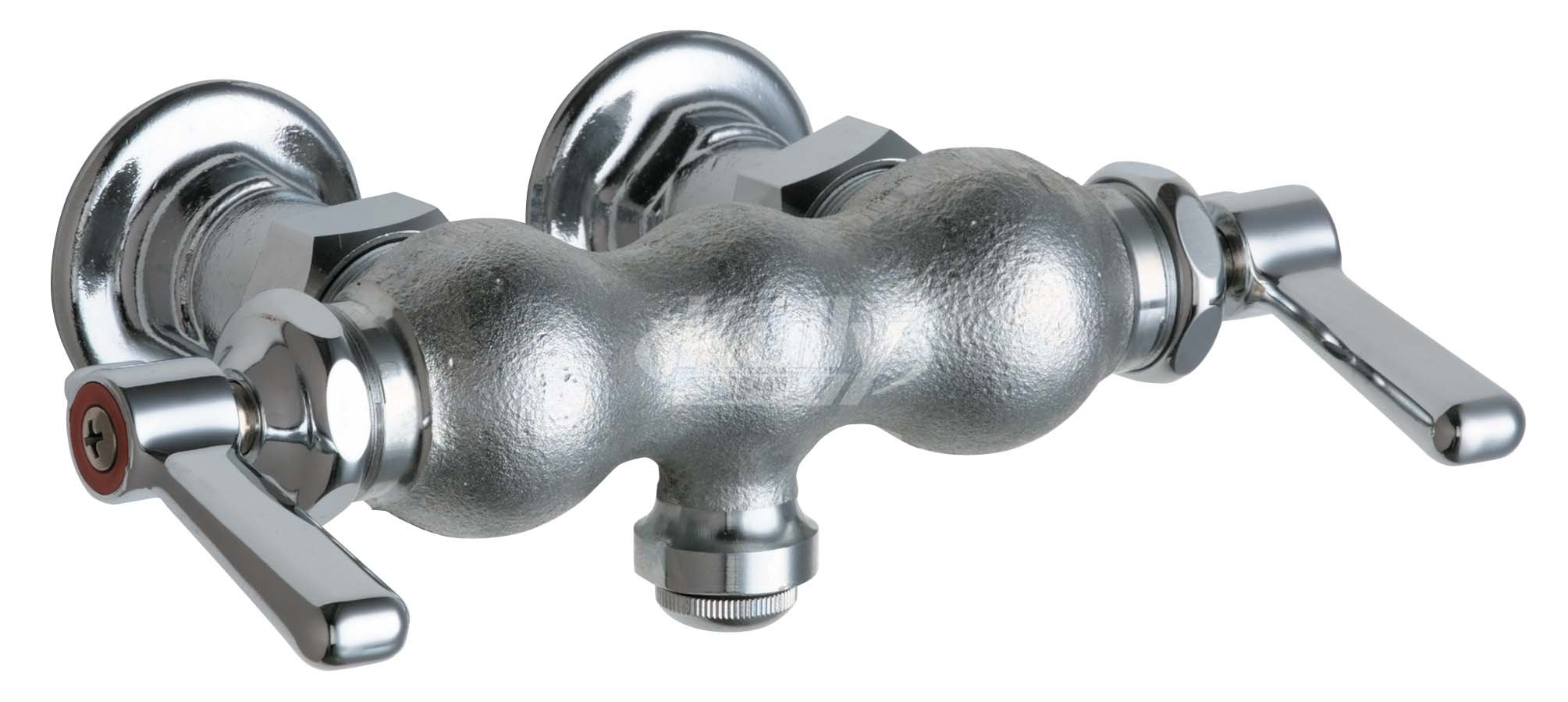

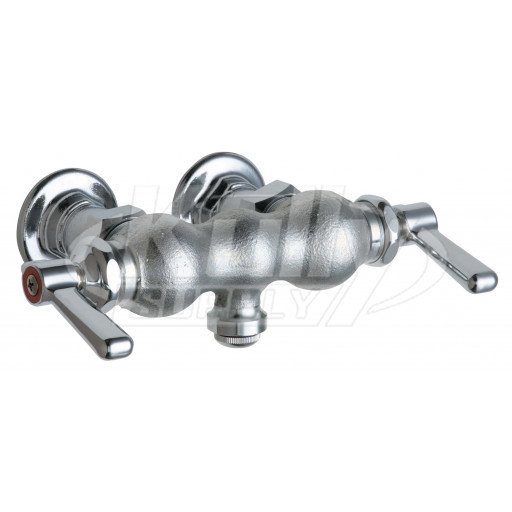

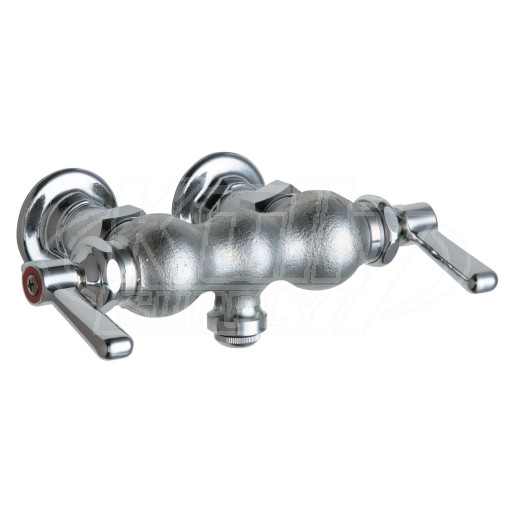

Chicago Faucets No. 65-261ABRCF, Rough chrome plated solid brass construction with integral shanks. 3 3/8” C-C inlets. Quixtop screen outlet. 2 3/8” metal lever handles with eight point tapered broach and secured color coded index buttons. Quaturn™ quarter-turn renewable compression cartridge designed to close with water pressure with square tapered broach feature to help facilitate handle removal. 1/2” N.P.T. flanged female inlets. This product meets ADA requirements and is tested and certified to industry standards: ASME A112.18.1, NSF 61, Sec. 9 and CSA B125.
PRODUCT TYPE
Wall mounted fitting
FEATURES & SPECIFICATIONS
- Rough chrome plated finish
- Solid brass body construction
- 3 3/8” C-C inlets
- Quixtop screen outlet, catalog #E1
- 2 3/8” lever metal handles with eight point tapered broach and secured color coded index buttons, catalog #369
- Quaturn™ quarter-turn renewable compression cartridge that closes with water pressure with tapered square broach to facilitate handle removal, catalog #1-100XT and #1-099XT
- 1⁄2” NPT flanged female inlets
PERFORMANCE SPECIFICATION
- Rated Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140° F
WARRANTY
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
COMPLIANT TO
- ASME A112.18.1M
- NSF 61, Sec. 9
- CSA B125
- ADA
