Description

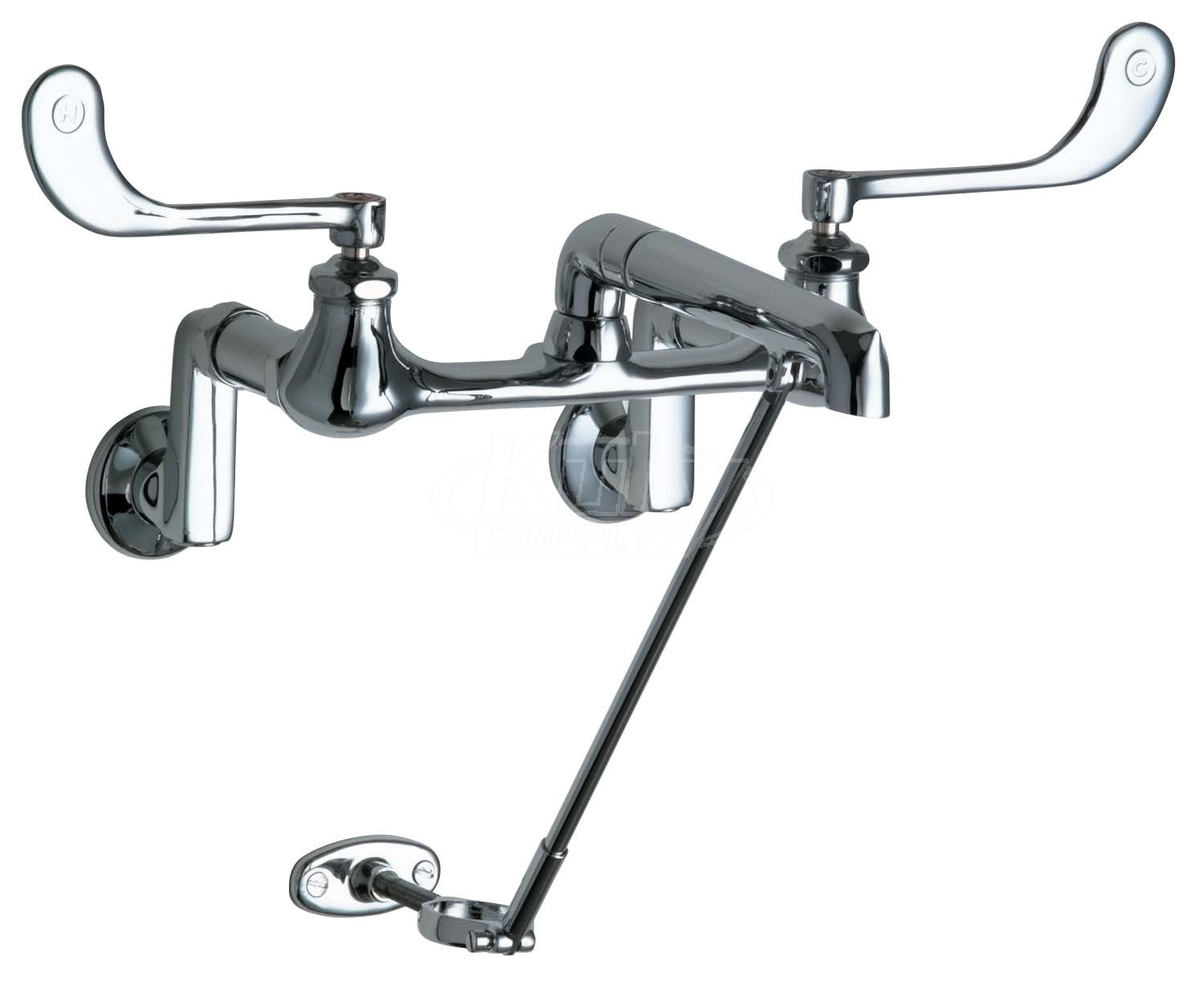

Chicago Faucets No. 814-CP, polished chrome plated solid cast brass construction. Rigid plain outlet spout with pail hook and flush valve pipe support. 6” elbow blade handles with eight-point tapered broach and secured, color-coded index buttons. Quaturn™ quarter-turn renewable compression cartridge designed to close with water pressure, with square tapered broach feature to help facilitate handle removal. Adjustable inlet supply arms on 5 5/8” – 12 5/8” centers with integral service stops and inlet extensions. This product meets ADA requirements and is tested and certified to ASME A112.18.1 and CSA B125 industry standards.
Product Type
Flushing Rim Sink Faucet
Features & Specifications
- 7 1/8” C-C Cast Spout with Pail Hook and Wall Brace
- Plain Outlet End
- 6” Metal Wristblade Handles with Secured Red and Blue Service Buttons
- Quaturn™ Operating Cartridges
- 2 1/2” Offset Adjustable Supply Arms with 1/2” NPT Female Thread Inlet and Integral Service Stop
- 2” Inlet Supply Extensions
Performance Specification
- Rating Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140°F
Warranty
- Lifetime Limited Faucet Warranty
- 5-Year Limited Cartridge Warranty
- 1-Year Limited Finish Warranty
Compliant To
- ASME A112.18.1M
- CSA B125.1
- NSF 61, Section 9
- ADA ANSI/ICC A117.1
Manufacturer Info
The Chicago Faucet Company has offered commercial and residential products built to stand the test of time. A combination of the best engineering, finest materials and quality workmanship has made Chicago Faucets the specified choice in many of the finest building products.
