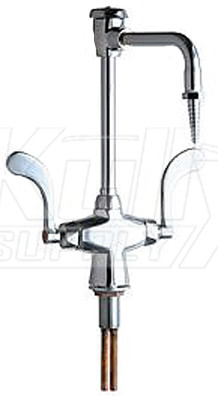

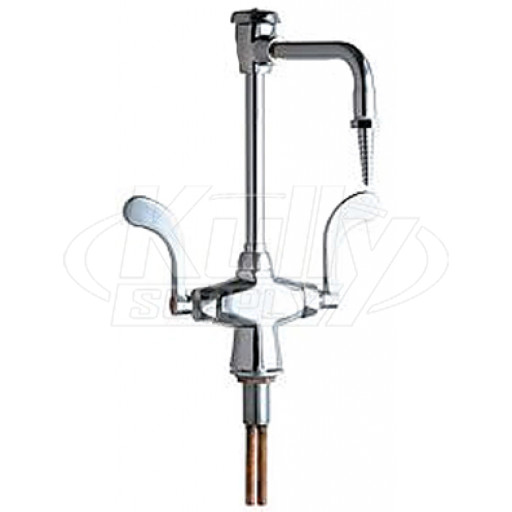

Chicago 930-317CP Combination Hot & Cold Water Fitting

Description

Chicago Faucets No. 930-317CP polished chrome plated solid brass construction. 6” center to center rigid / swing field convertable gooseneck spout. Full flow laboratory serrated nozzle. 4” metal wristblade handle(s) with sixteen point tapered broach and secured blue and red buttons. Quaturn™ rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square tapered stem. Integral inlet shank(s) contains standard 3/8” O.D. Copper supply tubes. Mounting hardware included. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1, CSA B125.1, and Certified to NSF/ANSI 61, Section 9 by CSA.

The Chicago 930-317CP Deck-Mounted Combination Hot & Cold Water Fitting includes:

• Swing vacuum breaker gooseneck spout
• Removable serrated hose nozzle
• Lever handles with hot and cold water index buttons
• Quaturn operating cartridge
• 3/8” O.D. copper supply tubes
• 9-3/4” Height to top of spout
• 5-3/8” Inlet to outlet projection
• 6-1/8” Height to outlet
