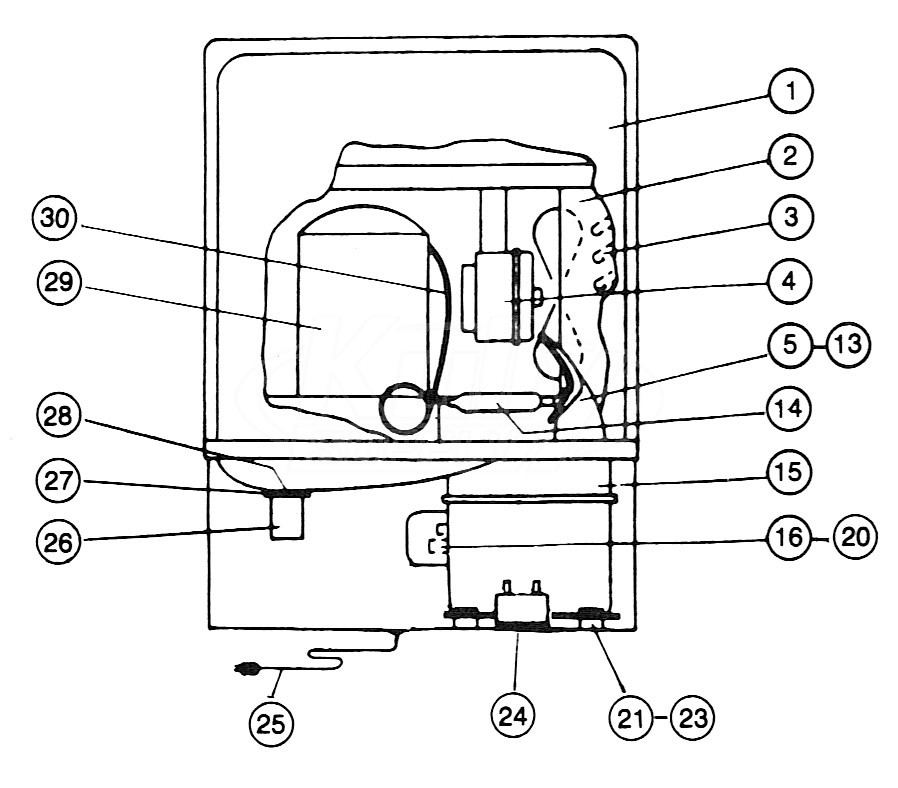

Elkay EHF-8-1 Parts Breakdown

Elkay EHF-8-1 Parts Breakdown

Item #: breakdown-EHF-8-1

Manufacturer: Elkay

Breakdown for Elkay models: EHF-8-1, EHFS-8-1, EWCF-8-1, EWCFS-8-1, TWCF-8-1, and TWCFS-8-1.

Spec Sheet

Part #	Part Details	Price	Options

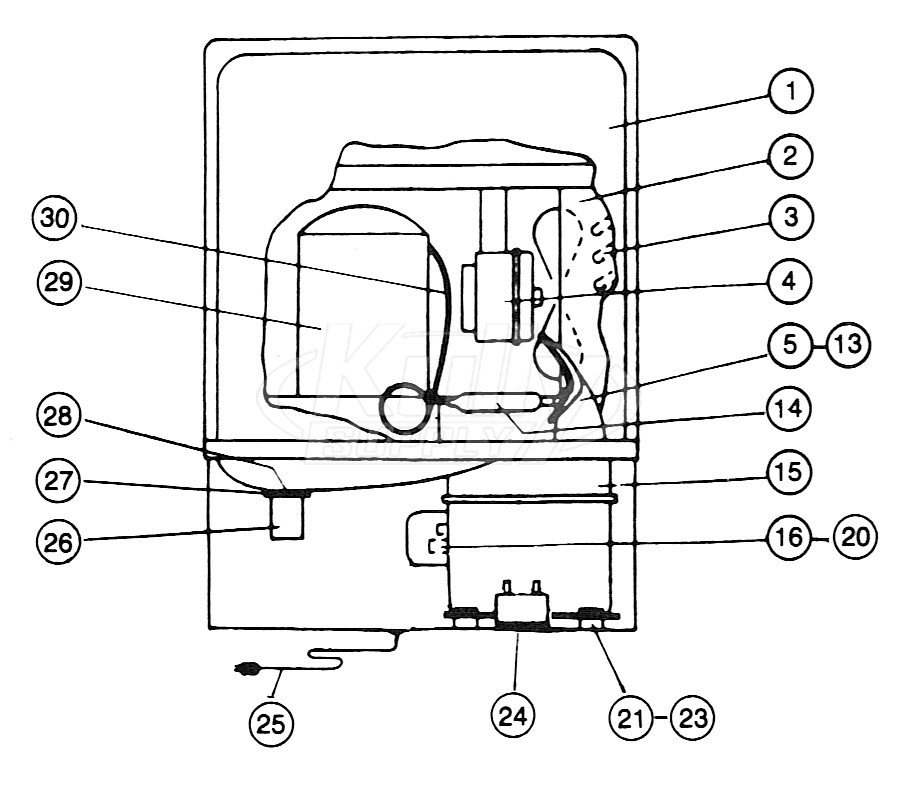

1	Elkay 21222C Stainless Steel Basin and Backsplash Item #: 102666 Learn More	$436.50
2	Elkay 50186C Shroud, Fan ESWA Item #: 106374 Learn More	$17.72
4	Elkay 20617C BRKT -FAN MOTOR Item #: 135129 Learn More	$32.71
4	Elkay 70018C Nut - Hex 1/4 - 20 (Discontinued) Item #: 106370 Learn More	More Info
6	Elkay 40322C Stream Breaker Item #: 102823 Learn More	$15.40

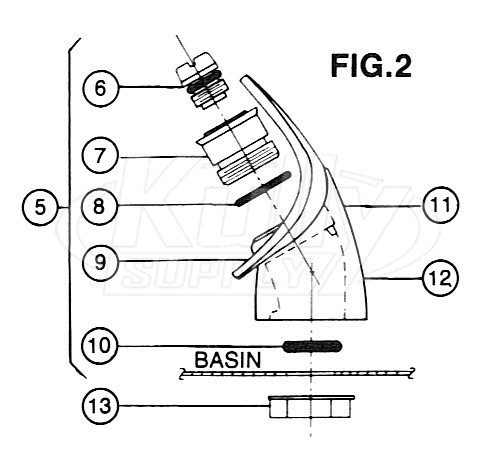

11	Elkay 92715C Flexi-Guard Bubbler Head Kit Item #: 102494 Learn More	List Price: $42.00 $37.80 You Save 10%
13	Elkay 70012C Lock Nut Item #: 102822 Learn More	$21.00
16	Elkay 30143C Relay (Discontinued) Item #: 106213 Learn More	More Info
18	Elkay 30233C SPRNG-OL ASPERA Item #: 135857 Learn More	$6.13
18	Elkay 30180C SPRNG-OVERLOAD Item #: 135852 Learn More	$9.07
19	Elkay 30235C COVER-TERM (ASPERA) Item #: 135859 Learn More	$14.65
19	Elkay 30181C COVER-TERM(TECH) Item #: 135853 Learn More	$11.11
20	Elkay 30234C CLIP -COMPR (ASPERA) Item #: 135858 Learn More	$6.13
21	Elkay 50144C GRMMT-COMPRESSOR Item #: 136255 Learn More	$9.07
23	Elkay 70184C HAIR PIN-COTTER Item #: 136592 Learn More	$2.75
26	Elkay 40129C Tailpipe 2.75 IN Item #: 106297 Learn More	List Price: $62.00 $55.80 You Save 10%
27	Elkay 50074C Drain Gasket Item #: 102475 Learn More	$6.60
28	Elkay 40384C Assy Strainer & Ferrule CP (Discontinued) Item #: 106313 Learn More	More Info
31	Elkay 60291C Screen for Inline Strainer Item #: 133471 Learn More	$2.75
33	Elkay 50036C INSUL-SND DAMP & INSL MTL Item #: 136247 Learn More	$23.39
35	Elkay 50198C Bushing Item #: 102476 Learn More	$2.75
37	Elkay 50079C INSUL-SND DAMP & INSL MTL Item #: 136249 Learn More	$7.84
38	Elkay 40045C Hex Nut Item #: 102472 Learn More	$28.59
39	Elkay 10031C Retaining Nut Item #: 102614 Learn More	$11.34

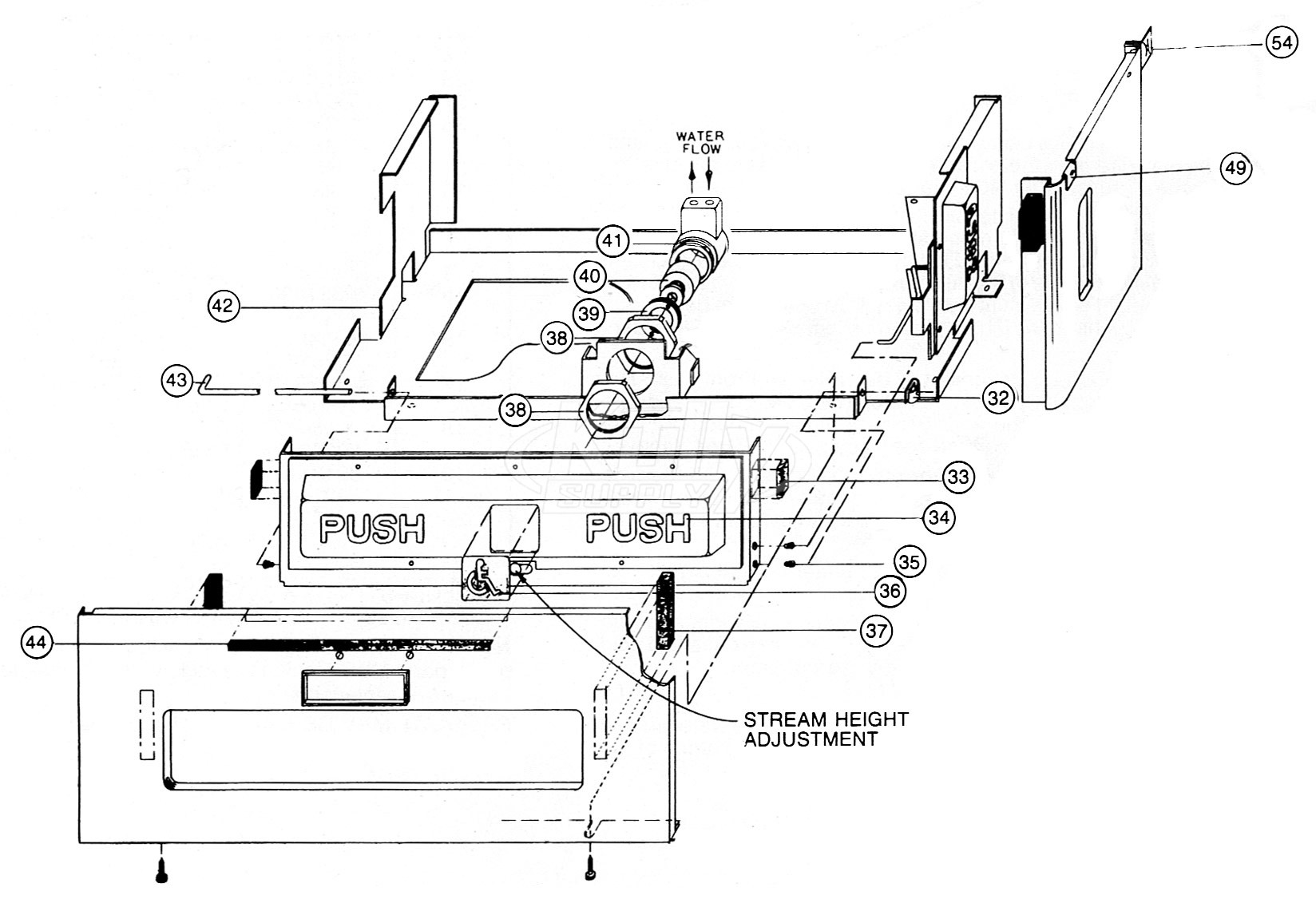

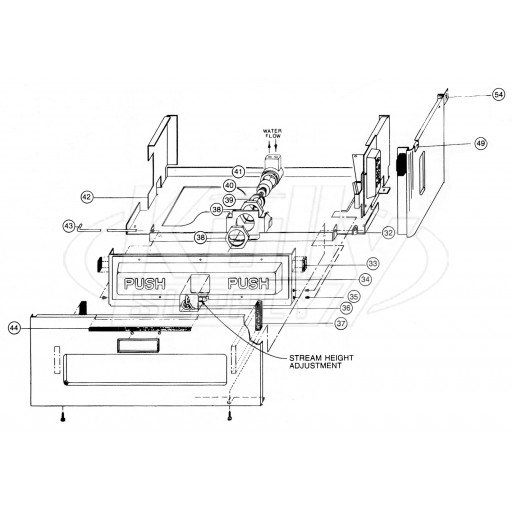

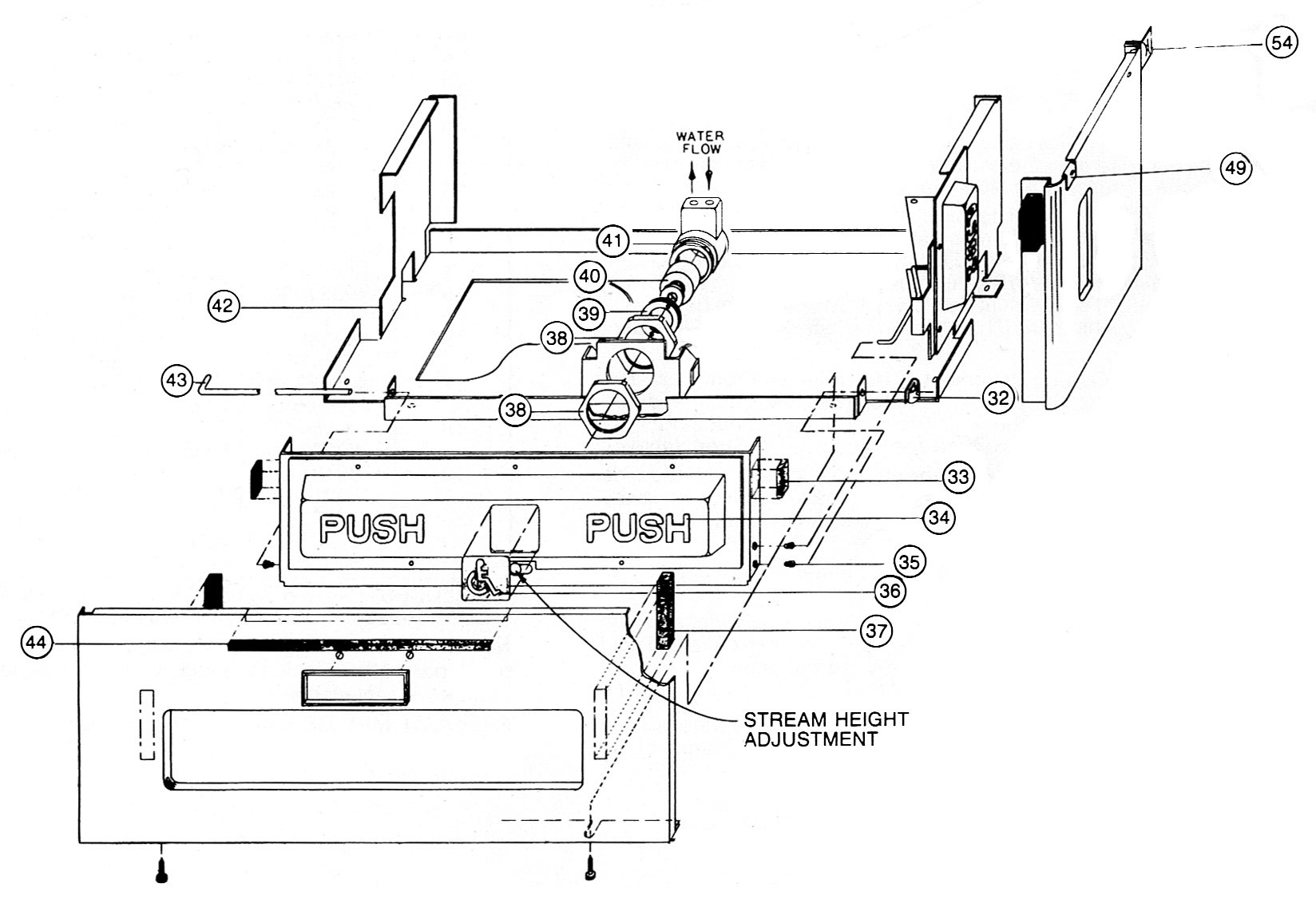

40	Elkay 61314C Valve Regulator Cartridge (Green Spring) Item #: 102539 Learn More	$40.83
43	Elkay 70278C Pivot Rod Item #: 102507 Learn More	$15.00
44	Elkay 21304C Front Panel for EHF - SS (Discontinued) Item #: 106663 Learn More	More Info
45	Elkay 70281C ROD -PIVOT (Discontinued) Item #: 136610 Learn More	More Info
46	Elkay 70282C ASSY -CLAMP C2981-1 (Discontinued) Item #: 136611 Learn More	More Info
47	Elkay 70279C ROD -LINKAGE SIDE PUSH-R (Discontinued) Item #: 136609 Learn More	More Info

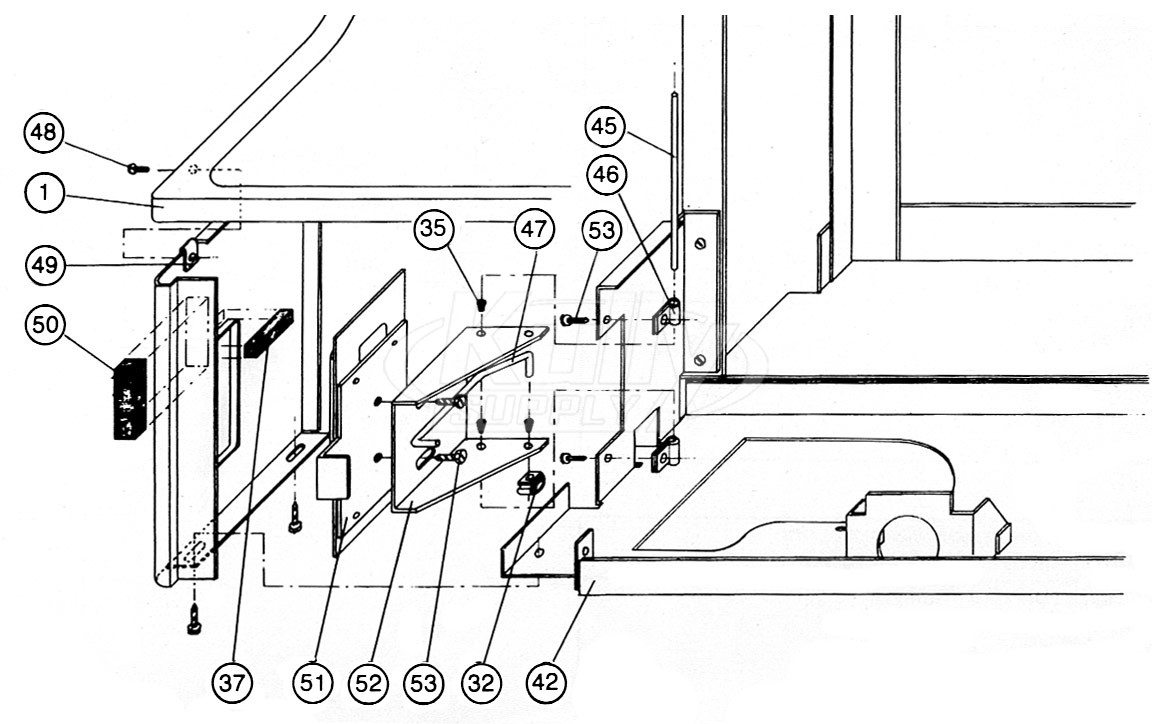

48	Elkay 70208C SCREW-#10-24 X .38 PHTC Item #: 136595 Learn More	$4.99
49	Elkay 70055C Nut, Speed 8-32 Item #: 106481 Learn More	$2.75
50	Elkay 50123C BUMPR-CORK/RUBBER Item #: 136251 Learn More	$4.99
51	Elkay 21399C Right Push Bar Assembly-Unbuffed Item #: 134264 Learn More	$42.84
51	Elkay 21519C ASSY -LH BAR BUFFED (Discontinued) Item #: 135210 Learn More	$42.84	More Info
51	Elkay 21401C ASSY-RH BAR BT(SERV) Item #: 135170 Learn More	$224.82
51	Elkay 21402C ASSY-LH BAR BT(SERV) Item #: 135171 Learn More	$224.82
53	Elkay 70002C Screw Item #: 102509 Learn More	More Info
54	Elkay 70142C Nut -Speed 10-24 Item #: 136588 Learn More	$6.27
55	Elkay 20430C Bracket-Wall ESWA Item #: 107022 Learn More	$28.50
56	Elkay 20774C Bracket-Hanger Item #: 107023 Learn More	$31.25
