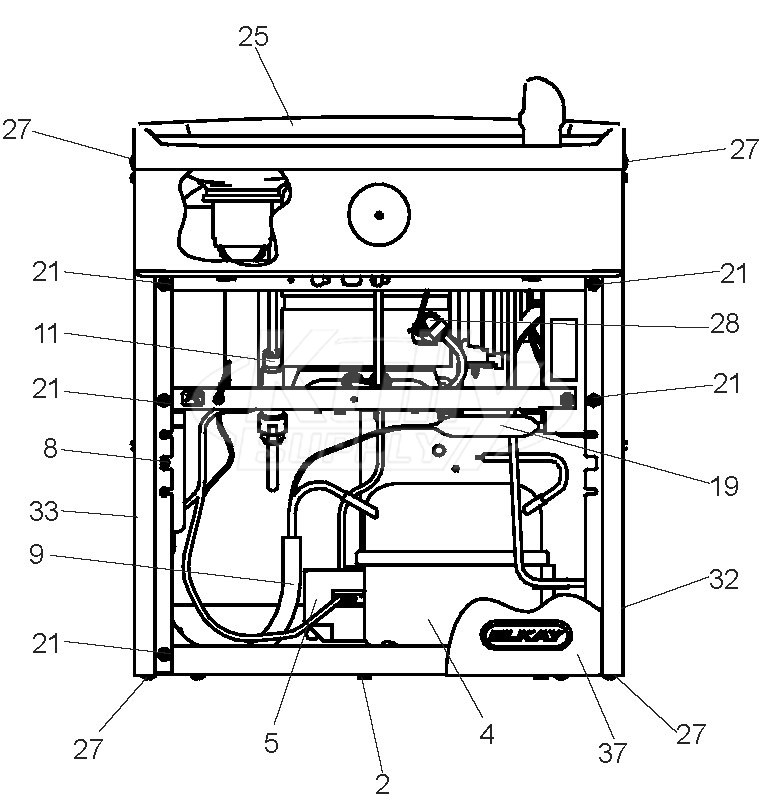

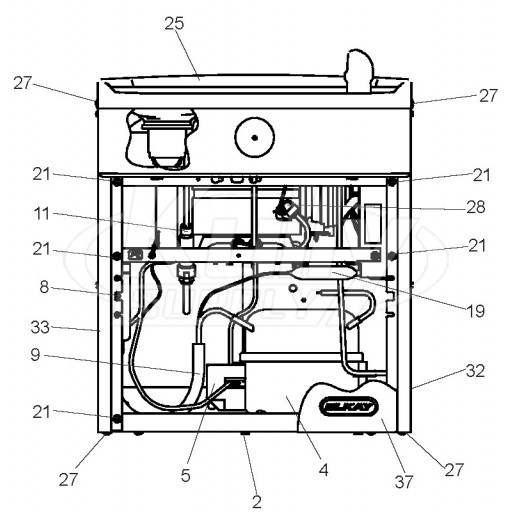

Elkay VRC Single Station Drinking Fountain Parts Breakdown

  • Item #: B100207
  • |
  • Model: VRC
  • |
  • Manufacturer: Elkay

How to use this page:
1. Identify the part(s) you need in the image.
2. Look for the corresponding "Item #" in the list below.
3. Add item to cart
-or-
4. Click on the item to view more details

Part # Image Part Details Price Options
1 Halsey Taylor 97446C Vandal Resistant Bubbler Kit Item #: 130869 Learn More
List Price: $174.00 $156.60 You Save 10%
2 Elkay 98777C Compressor Mounting Hardware Kit Item #: 162847 Learn More
$32.50
3 Elkay 98775C Fan Motor Assembly Kit Item #: 162844 Learn More
List Price: $130.00 $117.00 You Save 10%
4 Elkay 36322C Compressor with Overload and Relay Item #: 162634 Learn More
List Price: $415.00 $373.50 You Save 10%
5 Elkay 0000000238 Drinking Fountain Relay Overload and Cover Kit Item #: 169856 Learn More
List Price: $29.82 $27.10 You Save 9%
More Info
6 Elkay 98899C HAC/EMABF Hardware Kit (For Panels) Item #: 164706 Learn More
$26.40
7 Elkay 98776C Condenser/Drier Kit Item #: 162845 Learn More
List Price: $99.00 $89.10 You Save 10%
8 Halsey Taylor 35839C Cold Control Thermostat Item #: 102541 Learn More
$43.20
More Info
9 Elkay 98773C Cold Control Kit Item #: 163984 Learn More
$43.75
10 Elkay 35870C 115V Power Cord Item #: 135969 Learn More
$39.32
11 Elkay 55996C Strainer Item #: 102483 Learn More
$27.50
12 Elkay 27124C Cold Control Cover Item #: 135485 Learn More
$35.65
13 Elkay 55931C Bottom Plate Cover Grey Item #: 102500 Learn More
$27.50
14 Elkay 98684C Drain Elbow, Drain Gaskets, Drain Nut Item #: 162982 Learn More
$32.50
16 Elkay 56092C Drinking Fountain Plastic Tubing 1/4" x 48" Item #: 102487 Learn More
$15.40
17 Elkay 1000001906 Vandal-Resistant Drinking Fountain Push Button Kit Item #: 164324 Learn More
List Price: $189.00 $170.10 You Save 10%
18 Elkay 98530C Regulator Valve Kit (Red Spring) Item #: 140047 Learn More
$72.00
19 Halsey Taylor 66703C Drier 134A Item #: 129688 Learn More
$30.00
20 Elkay 98724C Evaporator Replacement Kit Item #: 151228 Learn More
$296.10
21 Elkay 70002C Screw Item #: 102509 Learn More
More Info
24 Elkay 28617C Screen - HVR8 Item #: 106389 Learn More
$11.11
25 Elkay 28963C Basin-HACVR Item #: 158685 Learn More
List Price: $192.00 $172.80 You Save 10%
26 Elkay 22897C Bottom Cover Panel Item #: 102749 Learn More
$38.75
28 Elkay 1000001602 John Guest Elbow 1/4" x 5/16" - 3 pack Item #: 162981 Learn More
List Price: $45.00 $41.37 You Save 8%
29 Elkay 70864C Torx Head Screw Item #: 102501 Learn More
$2.75
31 Elkay 28596C Panel for Screen - HVR8 Item #: 106388 Learn More
$49.63
32 Elkay 28525C Stainless Steel Right Hand Rear Panel Item #: 135783 Learn More
List Price: $106.00 $95.40 You Save 10%
33 Elkay 28528C Stainless Steel Left Hand Rear Panel Item #: 135784 Learn More
List Price: $86.00 $78.80 You Save 8%
34 Elkay 28519C RH Panel With No Opening (SS) Item #: 106165 Learn More
List Price: $92.00 $82.80 You Save 10%
35 Elkay 28522C LH Panel With No Opening (SS) Item #: 106166 Learn More
$88.20
36 Elkay 28516C Panel Front Disp VR (SS) Item #: 106163 Learn More
List Price: $49.00 $44.10 You Save 10%
37 Elkay 22955C Panel-Front Lower (SS) Item #: 106426 Learn More
List Price: $95.00 $85.50 You Save 10%
39 Elkay 98926C Filter Head Kit including John Guest Fittings Item #: 166811 Learn More
$42.50
40 Elkay 51299C Drinking Fountain Replacement Filter (1500 Gallons) Item #: 102502 Learn More
$94.17
