Description

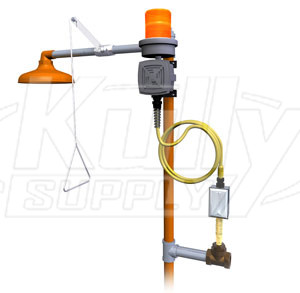

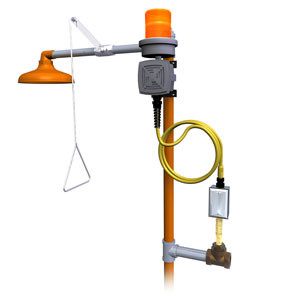

The Guardian AP275-200 Alarm and Light System (with Horn) serves to alert facility personnel that an accident has occurred and that assistance to the user may be required. Second, it deters unintended or malicious operation of the emergency equipment. For this reason, they are advisable in schools and other areas where the possibility of vandalism is present. Alarms are activated by a flow switch that senses the movement of water in the supply line when the safety unit is activated. Once activated, the bright light flashes and the horn sounds loudly.
- Installation: Unit is designed for use with combination units, and can be mounted on either the vertical pipe of the station or on a wall adjacent to the unit. 5 amp, 125 volt electrical supply is required.
- Visual Signal: Weather-proof amber flashing light with shatter-resistant lens.
- Audible Signal: Weather-proof horn delivers distinctive, urgent signal. Volume is preset at 103 db at 10 feet. An adjustment screw on the front of horn allows adjustment of output sound level.
- Flow Switch: 1-1/4” IPS single pole, double throw waterproof flow switch for installation in water supply line to emergency unit. Switch senses flow of water when either the eyewash or shower is activated. Flow switch must be installed with tee fitting in horizontal position, flow switch body in vertical position and at least 6” from closest fitting. Direction of flow is marked on switch body.
- Mounting: Furnished complete with bracket for mounting on vertical pipe or wall, junction box and 5 foot flexible, NEMA 4X cord and receptacle. Electrical connection by others.
Manufacturer Info
Guardian Equipment is the innovative leader in the emergency eyewash and shower industry. Guardian is continually expanding their product offering to remain the best resource for emergency response needs.
