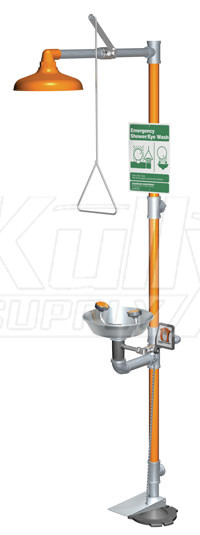

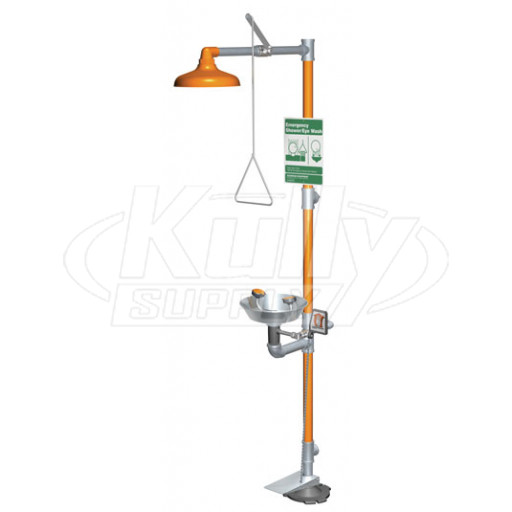

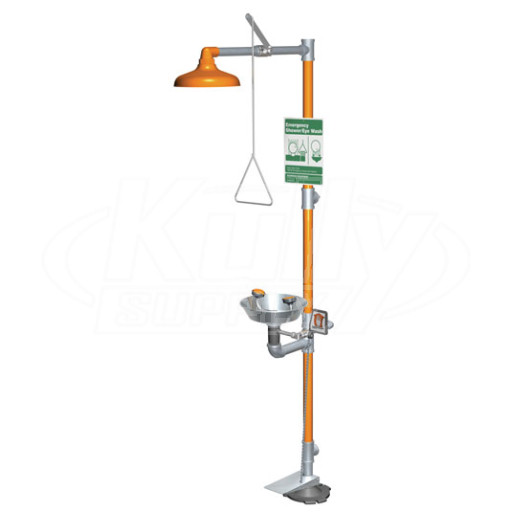

Guardian G1950HFC Combination Drench Shower & Eye/Face Wash (with Hand & Foot Control and Stainless Steel Receptor)

Description

• Showerhead: 10” diameter orange ABS plastic.
• Shower Valve: 1” IPS chrome-plated brass stay-open ball valve. Valve is US-made with chrome-plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29” stainless steel pull rod.
• Sprayhead Assembly: Two FS-Plus sprayheads. Each sprayhead has a “flip top” dust cover, internal flow control, and filter to remove impurities from the water flow.
• Eye/Face Wash Receptor: 11-1/2” diameter. Receptor is stainless steel (G1950HFC).
• Eye/Face Wash Valve: 1/2” IPS chrome-plated brass stay-open ball valve. Valve is US-made with chrome-plated brass ball and Teflon seals. Valve is activated by flag handle or foot treadle. Unit remains in operation until handle is returned to closed position.
• Pipe and Fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
• Supply: 1-1/4” NPT female top or side inlet.
• Waste: 1-1/4” NPT female outlet.
• Sign: Furnished with ANSI-compliant identification sign.

Manufacturer Info

Guardian Equipment is the innovative leader in the emergency eyewash and shower industry. Guardian is continually expanding their product offering to remain the best resource for emergency response needs.
