Description

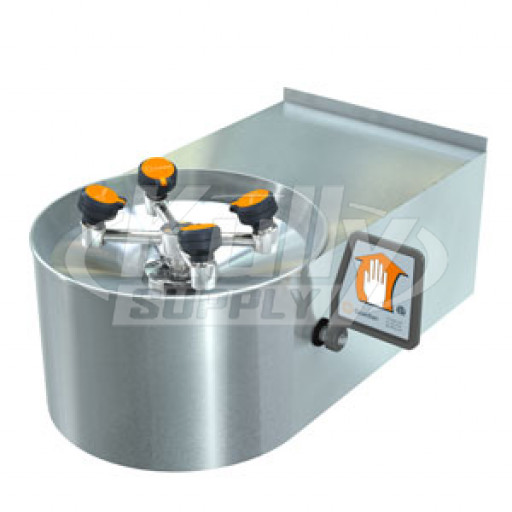

The Guardian GBF1721 Barrier-Free Wall-Mounted Eye/Face Wash (with Stainless Steel Receptor and Stainless Steel Skirt) is handicap-accessible. The receptor is lowered and extended to permit access by a wheelchair user. The profile of the unit is “flattened” to comply with maximum height and knee clearance requirements. The unit has a stainless steel receptor and wrap around skirt to conceal the valve, drain, and piping.
- ADA Compliance: When installed at recommended mounting height, unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach, minimum knee clearance and distance from obstructions).
- Sprayhead Assembly: Four GS-Plus sprayheads. Each sprayhead has a “flip top” dust cover, internal flow control, and filter to remove impurities from the water flow.
- Valve: 1/2” IPS brass stay-open ball valve. Valve is US-made with chrome-plated brass ball and Teflon seals.
- Receptor: 11-1/2” stainless steel with wraparound skirt.
- Mounting: Receptor and skirt unit has welded stainless steel bracket for wall mounting.
- Supply: 1/2” NPT female inlet.
- Waste: 1-1/2” OD chrome-plated brass tailpiece.
- Sign: ANSI-compliant identification sign.
Manufacturer Info
Guardian Equipment is the innovative leader in the emergency eyewash and shower industry. Guardian is continually expanding their product offering to remain the best resource for emergency response needs.
