Description

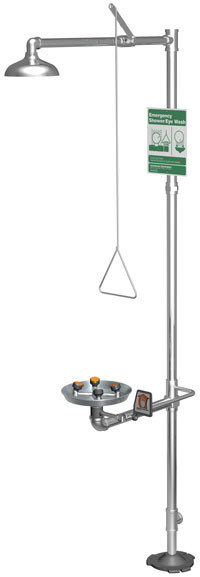

The Guardian GBF1909PCC Barrier-Free Brass Combination Drench Shower & Eye/Face Wash is handicap-accessible. The showerhead and pull rod are extended for improved access. The receptor is lowered and extended to permit access by a wheelchair user. The profile of the unit is “flattened” to comply with maximum height and knee clearance requirements. The unit is constructed of chrome-plated brass pipe, fittings, and components for an attractive appearance and superior durability.
- ADA Compliance: Unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach, minimum knee clearance and distance from obstructions).
- Showerhead: 8” diameter polished chrome-plated cast brass.
- Shower Valve: 1” IPS chrome-plated brass stay-open ball valve with stainless steel actuating arm and 47 1/2” stainless steel pull rod.
- Sprayhead Assembly: Four GS-Plus sprayheads. Each sprayhead has a “flip-top” dust cover, internal flow control, and filter to remove impurities from water flow.
- Eye/Face Wash Receptor: 11-1/2” stainless steel.
- Eye/Face Wash Valve: 1/2” IPS chrome-plated brass stay-open ball valve with flag handle.
- Pipe and Fittings: Polished chrome-plated brass.
- Supply: 1-1/4” NPT female top inlet.
- Waste: 1-1/4” NPT female outlet. Outlet can be positioned at either 8” or 20” above finished floor by reversing lower pipe nipples.
- Sign: ANSI-compliant identification sign.
Manufacturer Info
Guardian Equipment is the innovative leader in the emergency eyewash and shower industry. Guardian is continually expanding their product offering to remain the best resource for emergency response needs.
