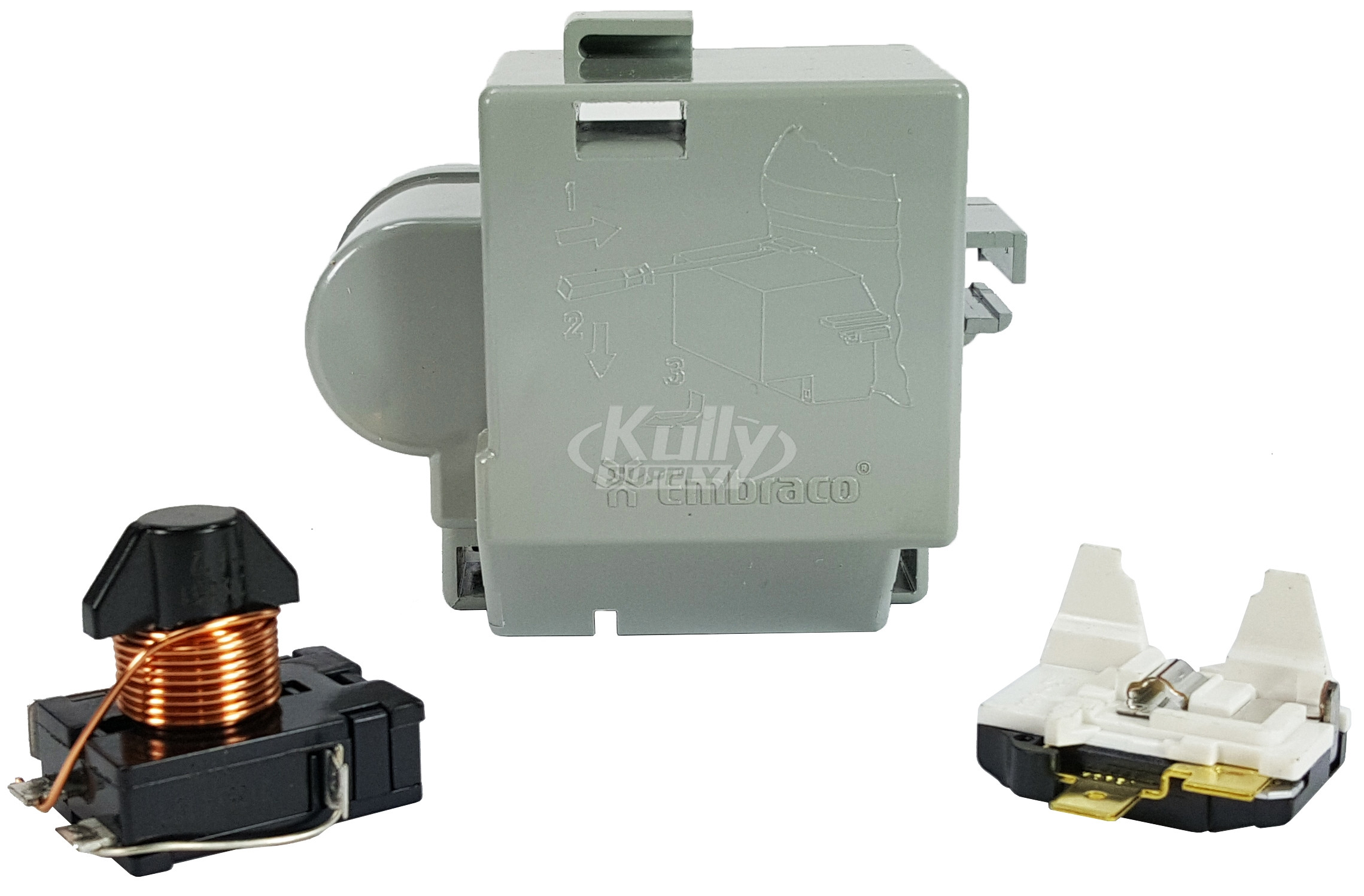

Elkay 98535C Overload, Relay and Cover Kit - 115V

Elkay 98535C Overload, Relay and Cover Kit - 115V

Item #: 140041
|
Model: 98535C
|
Manufacturer: Elkay

If you are looking to find your Elkay repair parts quickly and easily, you’ve come to the right place. This Elkay 98535C Overload, Relay and Cover Kit – 115V is a direct replacement part manufactured by Elkay. Order this Elkay 98535C today and you will have your Elkay repairs completed in no time at all

In Stock
10 Ready To Ship Today
Additional Quantities Typically Ship in 1-2 Weeks

List Price: $45.00 $41.37 You Save 8%

Product Description
Specifications
Reviews (0)
Questions (1)

Product Description Specifications Reviews (0) Questions (1)

Q: How do you remove a defective relay assembly and install a new one? Thanks.

Answer

Posted on Tuesday, September 12, 2017 on product Elkay 98535C Overload, Relay and Cover Kit - 115V

0
vote

A:
Here are the steps to replacing a defective Relay & Overload Assembly on a Drinking Fountain:

1) Remove the screws at the bottom of the fountain and remove the wrapper panel.

2) Unplug the Drinking Fountain from the wall outlet.

3) Locate the Plastic Cover on the side of the Compressor that hides the Relay & Overload.

4) Remove the Relay Cover by pressing down the Slot at the top of the cover using a straight blade screwdriver.

5) Remove the Relay first, then the Overload. They will simply pull off of the Compressor like a plugin.

6) Plugin the Overload, followed by the Relay and Snap the Cover back onto the Compressor. The Relay will be secure after you hear two clicks.

7) Plug the Drinking Fountain back into the wall outlet and secure the wrapper panel back onto the fountain.

If you have any other questions our experts are here to help! Call or text 800-518-5388

Posted by Kully Supply on Tuesday, September 12, 2017
