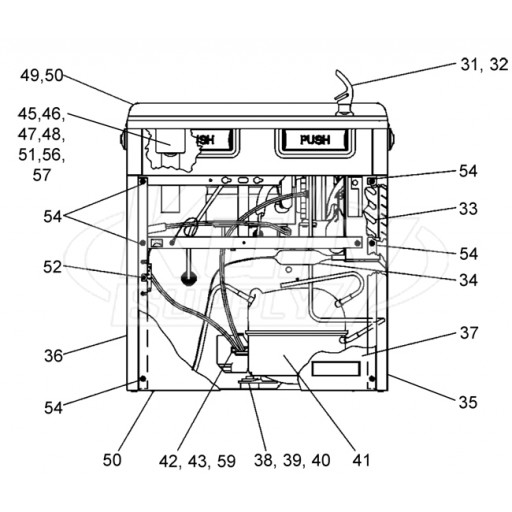

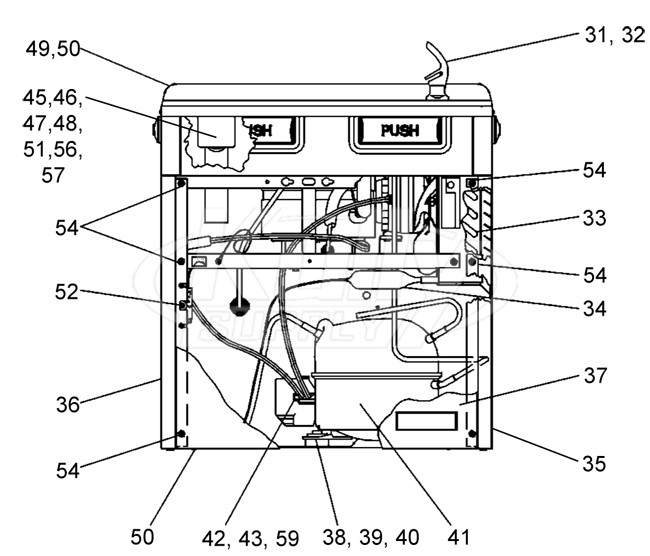

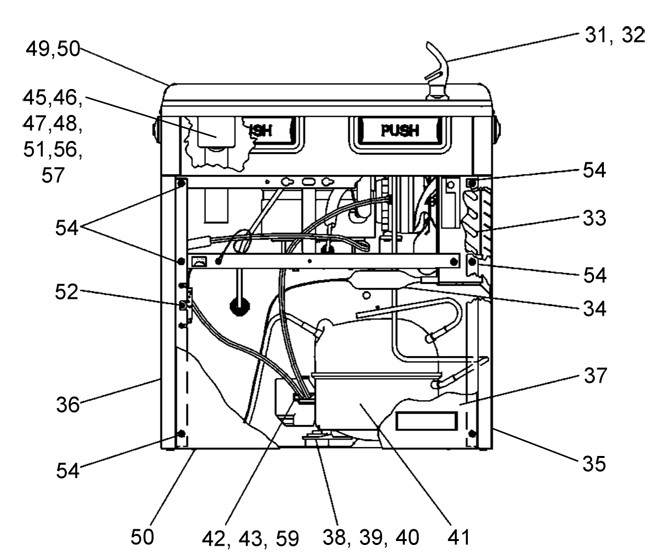

Halsey Taylor HACFSC.B Parts Breakdown

  • Item #: breakdown-HACFSC.B
  • |
  • Model: HACFSC.B
  • |
  • Manufacturer: Halsey Taylor
Breakdown for post 1994 models: HAC8FSCQ*1B.
Part # Image Part Details Price Options
1 Elkay 22897C Bottom Cover Panel Item #: 102749 Learn More
$38.75
2 Elkay 51531C Pivot Block Item #: 102479 Learn More
$11.36
More Info
3 Elkay 11-14117-43-620 Nut 1/4" Item #: 102542 Learn More
More Info
4 Elkay 22901C Side Push Bar Bracket Item #: 102465 Learn More
$15.40
5 Elkay 28123C PANEL-RH PUSH (PV) Item #: 135635 Learn More
List Price: $48.00 $43.20 You Save 10%
5 Elkay 28124C Panel-RH Push (SS) Item #: 135636 Learn More
List Price: $68.00 $61.20 You Save 10%
6 Elkay 28127C PANEL-LH PUSH (PV) Item #: 135637 Learn More
List Price: $48.00 $43.20 You Save 10%
6 Elkay 28128C Panel-LH Push (SS) Item #: 135638 Learn More
List Price: $68.00 $61.20 You Save 10%
7 Elkay 28131C Front Panel Platinum Vinyl Item #: 102789 Learn More
List Price: $55.00 $49.50 You Save 10%
7 Elkay 28132C Front Panel (ss) Item #: 106981 Learn More
List Price: $95.00 $85.50 You Save 10%
8 Halsey Taylor 55859C Push Bar Adapter Item #: 102543 Learn More
$11.48
9 Elkay 55947C Grey Push Button Item #: 102729 Learn More
$14.57
More Info
10 Elkay 22900C Front Push Bar Bracket Item #: 102464 Learn More
$21.00
11 Elkay 70864C Torx Head Screw Item #: 102501 Learn More
$2.75
12 Elkay 50212C Pivot Block Pin Item #: 102477 Learn More
$7.56
More Info
13 Elkay 51667C Bumper, Press Bar Item #: 102819 Learn More
$8.52
14 Elkay 40045C Hex Nut Item #: 102472 Learn More
$28.59
15 Elkay 23003C Bracket, Regulator Mounting Item #: 102808 Learn More
$15.00
16 Elkay 15005C Cartridge Retaining Nut Item #: 102460 Learn More
$8.34
More Info
17 Elkay 61314C Valve Regulator Cartridge (Green Spring) Item #: 102539 Learn More
$40.83
18 Elkay Cartridge Holder 50986C Item #: 102478 Learn More
$43.75
19 Elkay 70935C Screw-Shoulder Item #: 106157 Learn More
$5.50
20 Elkay 11-26275-43-890 Screw 10/24 Item #: 102504 Learn More
$2.75
21 Elkay 36208C Power Cord Item #: 136068 Learn More
List Price: $54.00 $48.60 You Save 10%
22 Elkay 30664C Fan Blade (Discontinued) Item #: 106616 Learn More
More Info
23 Elkay 70018C Nut - Hex 1/4 - 20 (Discontinued) Item #: 106370 Learn More
More Info
24 Elkay 31490C Fan Motor (Discontinued) Item #: 102518 Learn More
More Info
25 Elkay 70009C Exp-Screw Furn w/AL Motor Item #: 106633 Learn More
More Info
26 Elkay 56237C Shroud-Fan (Discontinued) Item #: 136367 Learn More
More Info
27 Elkay 56092C Drinking Fountain Plastic Tubing 1/4" x 48" Item #: 102487 Learn More
$15.40
28 Elkay 75524C Panel Clip - U Type Item #: 136660 Learn More
More Info
29 Elkay 55996C Strainer Item #: 102483 Learn More
$27.50
30 Elkay 56159C Plastic 1/4" Bubbler Nipple Item #: 102846 Learn More
More Info
31 Halsey Taylor Chrome-Plated Bubbler 51544C (Discontinued) Item #: 102522 Learn More
More Info
32 Elkay 0000001192 Flat Black Gasket Item #: 102517 Learn More
$12.60
33 Elkay 66743C Condenser (Discontinued) Item #: 133604 Learn More
More Info
34 Elkay 66703C DRIER-134A (Discontinued) Item #: 136559 Learn More
More Info
35 Elkay 28144C Right Hand Rear Panel (PV) Item #: 135640 Learn More
$46.46
35 Elkay 28145C PANEL-RH REAR (SS) (Discontinued) Item #: 135641 Learn More
$65.76
More Info
36 Elkay 28148C PANEL-LH REAR (PV) Item #: 135643 Learn More
List Price: $109.00 $98.10 You Save 10%
36 Elkay 28149C PANEL-LH REAR (SS) (Discontinued) Item #: 135644 Learn More
$49.71
More Info
37 Elkay 22844C Front Lower Panel (PV) Item #: 106218 Learn More
List Price: $44.00 $40.39 You Save 8%
37 Elkay 22955C Panel-Front Lower (SS) Item #: 106426 Learn More
List Price: $95.00 $85.50 You Save 10%
38 Elkay 10-15161-43-550 Stud (Discontinued) Item #: 110862 Learn More
$6.13
More Info
39 Elkay 10-08067-40-570 Grommet (Discontinued) Item #: 110863 Learn More
More Info
40 Elkay 19037000 Clip (Discontinued) Item #: 110864 Learn More
More Info
41 Elkay 36094C Compressor Service Pak 115V (Discontinued) Item #: 106299 Learn More
More Info
42 Elkay 35959C Relay (Discontinued) Item #: 102705 Learn More
More Info
43 Elkay 35768C Cover Relay (Discontinued) Item #: 129695 Learn More
More Info
44 Elkay 66576C HEATX-BARRIER FREE (Discontinued) Item #: 136522 Learn More
More Info
45 Elkay 45351C Assy. Waste Line (Discontinued) Item #: 107129 Learn More
More Info
46 Elkay 100147140560 Drain Gasket Item #: 102742 Learn More
$8.80
47 Elkay 10-26399-31-640 Drain Plug Item #: 102778 Learn More
$24.75
48 Halsey Taylor 16-02705-08-640 Strainer Plate Item #: 102520 Learn More
$13.48
50 Elkay 75634C Basin Screw Item #: 129717 Learn More
$6.27
More Info
51 Elkay 75589C Drain Gasket (Discontinued) Item #: 102740 Learn More
More Info
52 Elkay 31513C Cold Control Thermostat Item #: 102467 Learn More
$43.20
53 Elkay 66534C Evaporator Assembly (Discontinued) Item #: 102777 Learn More
More Info
54 Elkay 70002C Screw Item #: 102509 Learn More
More Info
55 Elkay 50124C BUMPR-CORK/RUBBER Item #: 136252 Learn More
$3.83
56 Elkay 56121C 1-1/4" Corner Elbow (Discontinued) Item #: 102738 Learn More
More Info
57 Elkay 75588C Drain Nut (Discontinued) Item #: 102739 Learn More
More Info
58 Elkay 55931C Bottom Plate Cover Grey Item #: 102500 Learn More
$27.50
59 Elkay 36158C Overload 115V (Discontinued) Item #: 106323 Learn More
More Info
