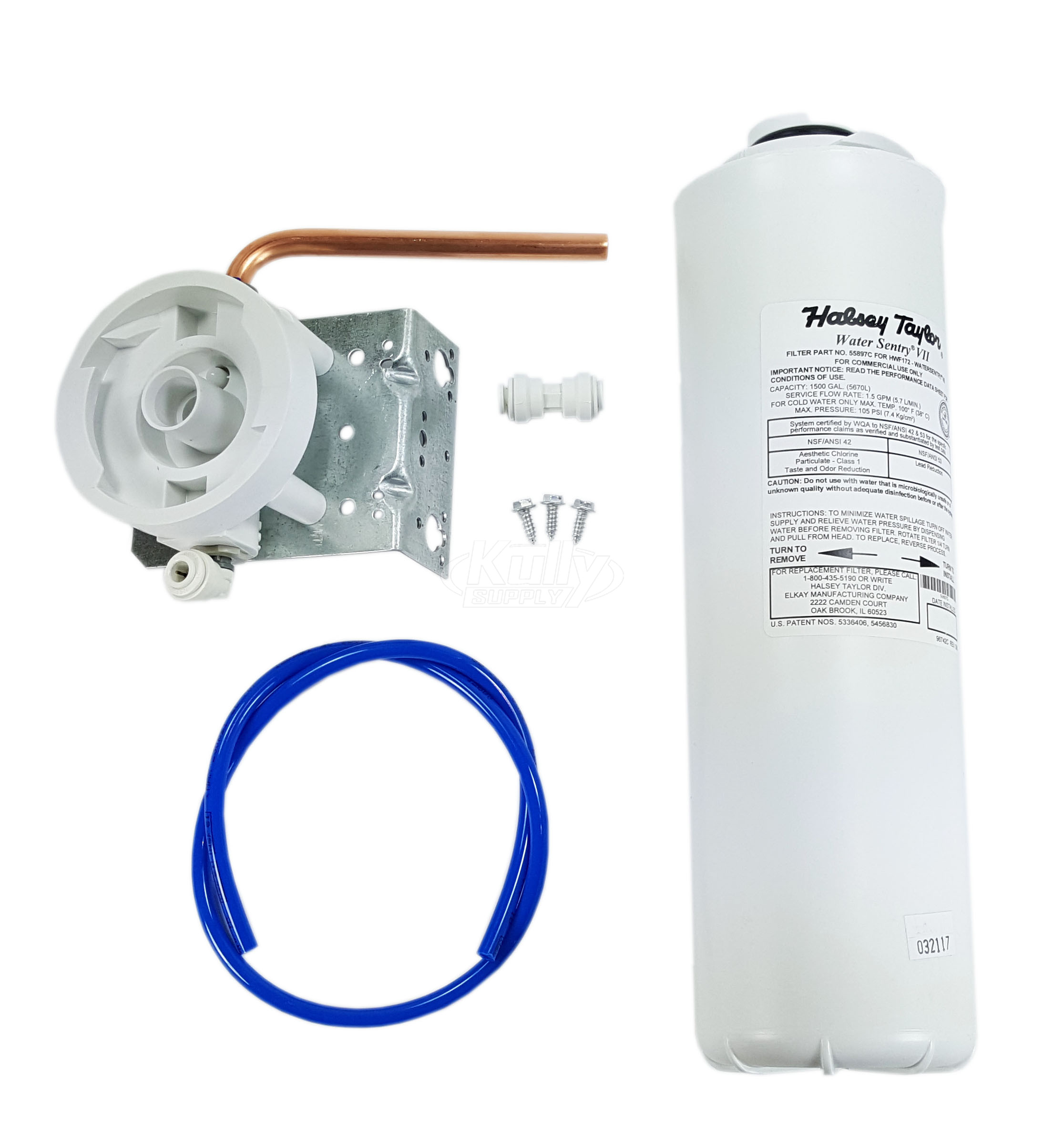

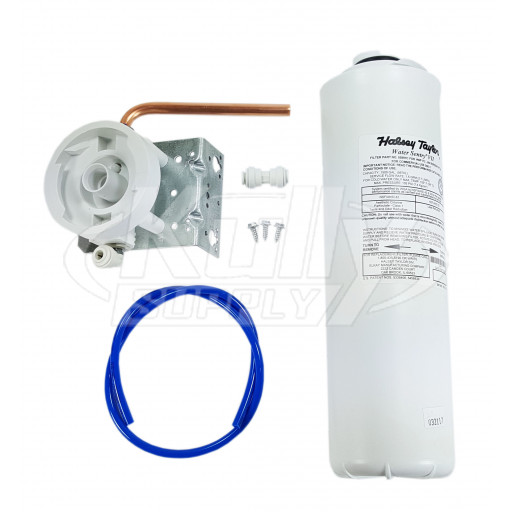

Halsey Taylor HWF 172 Water Filter Kit

Items Included

• Filter
• Filter head
• Mounting bracket
• 1/4” polytubing, connectors and screws
• Installation instructions
• Performance Data Sheet

Description

The Halsey Taylor HWF 172 Water Filter Kit CAN be used on Halsey Taylor OVLSER, OVLER, HT, HRF, RC and BFMR series drinking fountains, but it must be mounted into the wall behind the backplate. This kit CANNOT be used in the Halsey Taylor HTV, SW, WC, HBW, RWM series drinking fountains or the Halsey Taylor unrefrigerated HT, HRF and OVL series drinking fountains.

General

The Halsey Taylor HWF 172 is designed specifically for use with the following series of Halsey Taylor water coolers: HAC, HACBL, WM**, SCWT** series, S series and WMBL. Can also be used on OVLSER, OVLER, HT, HRF, RC & BFMR units but must be mounted into the wall behind the unit’s backplate. CANNOT be used in the HTV, SW, WC, HBW, RWM or the unrefrigerated versions of the HT, HRF and OVL series. **For water cooled models contact the factory.

RECOMMENDED USE CONDITIONS

Capacity ......................1,500 Gallons (5678 £) Flow rate .....................0.75gpm (2.8 l/m) Temperature................40-120°F (4 – 49°C) Maximum Pressure.....105psi (724 Kpa) Minimum Pressure......20psi (138 Kpa)

PERFORMANCE TEST CONDITIONS*

Capacity ......................1,500 Gallons (5678 £) Flow rate .....................0.75gpm (2.8 l/m) Pressure......................60psi (4.2 Kg/cm2) Temperature................68-70°F (20-21°C) *Performance will vary depending on local water conditions.

Water Connection

• Water Inlet for 3.8” O.D. Tube
• Water Outlet for 1.4” O.D. Tube

Standards

Tested and certified by NSF International, the widely recognized and respected independent certification organization for public health safety. This filter has been tested to the following NSF International standards: NSF/ANSI Standards 42 Chlorine, Particulate, and Taste and Odor. NSF/ANSI Standard 53 for Reduction of Lead and Cyst.

92640C Filter Monitor

Optional accessory monitors the number of gallons used for determining when to change filter. Monitor operates on one 9 volt alkaline battery. Not included. Installation instructions included.

55897C Replacement Filter

Replacement filter for Water Sentry VII. Replacement instructions included. Filter should be replaced every 1,500 gallons (5678 liters) or approximately one (1) year after installation. Use part # 55897C when ordering replacement filter.

Manufacturer Info

Halsey Taylor offers outdoor water coolers, water coolers for schools, parks and shopping centers, floor-mounted and wall-mounted coolers, and fountains in a variety of shapes and styles. Our durable and attractive finishes further reflect our concern for our products appearance, as well as their ability to withstand the test of time.
