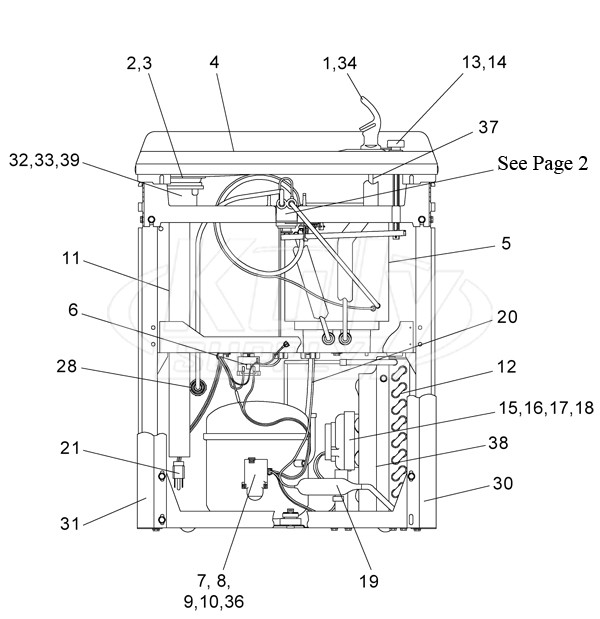

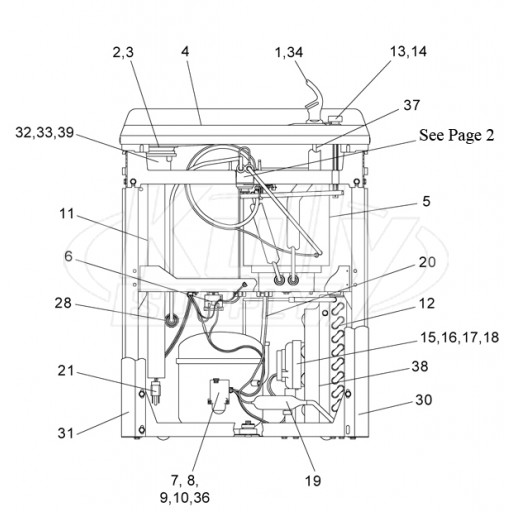

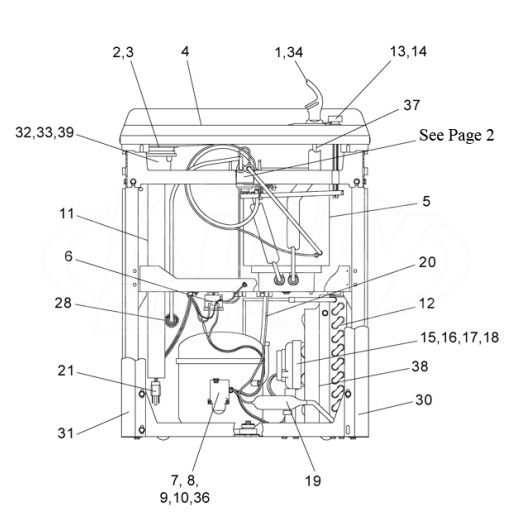

Halsey Taylor SW.L Drinking Fountain Parts Breakdown

Halsey Taylor SW.L Drinking Fountain Parts Breakdown

Item #: B100132

Manufacturer: Halsey Taylor

Breakdown for models: SW4AQ*1L, SW4AQ*1L-K, SW8AQ*1L, SW8AQ*1L-K, and SW14AQ*1L.

Spec Sheet

Part #	Part Details	Price	Options
1	Halsey Taylor Chrome-Plated Bubbler 51544C (Discontinued) Item #: 102522 Learn More	More Info
2	Elkay 10-26399-31-640 Drain Plug Item #: 102778 Learn More	$24.75
3	Halsey Taylor 16-02705-08-640 Strainer Plate Item #: 102520 Learn More	$13.48
4	Elkay 28340C TOP -BASIN Item #: 135729 Learn More	List Price: $208.00 $187.20 You Save 10%
5	Elkay 66504C Evaporator Assembly (Short) (Discontinued) Item #: 106290 Learn More	More Info
5	Elkay 66506C EVAP - NSF (Long) (Discontinued) Item #: 106424 Learn More	More Info
6	Elkay 31513C Cold Control Thermostat Item #: 102467 Learn More	$43.20
7	Elkay 35762C Compressor Service Pack Item #: 102496 Learn More	List Price: $559.00 $466.77 You Save 16%	More Info
7	Elkay 35775C Compressor (Discontinued) Item #: 134491 Learn More	More Info
8	Elkay 36158C Overload 115V (Discontinued) Item #: 106323 Learn More	More Info
8	Elkay 31027C OL/RL-115V 1.350.158 (Discontinued) Item #: 106400 Learn More	More Info
8	Elkay 35840C Overload, 115V (Discontinued) Item #: 102843 Learn More	More Info
8	Elkay 36163C Relay (Discontinued) Item #: 102854 Learn More	$16.12	More Info
8	Elkay 35843C Relay, 115V (Discontinued) Item #: 102844 Learn More	More Info
9	Elkay 19-42439-01-550 Cover Item #: 134479 Learn More	$6.13
10	Elkay 35768C Cover Relay (Discontinued) Item #: 129695 Learn More	More Info
10	Elkay 31797C Cover, Relay-Double Sided Item #: 106699 Learn More	$14.44	More Info
11	Elkay 45698C Assy-Tailpipe Item #: 130894 Learn More	List Price: $63.00 $56.70 You Save 10%
12	Elkay 66251C CNDSR-134A-1ROW Item #: 136475 Learn More	List Price: $121.22 $99.12 You Save 18%
12	Elkay 66252C CNDSR-2 ROW 134A Item #: 136476 Learn More	List Price: $119.68 $97.86 You Save 18%
12	Elkay 66616C CNDSR Item #: 136529 Learn More	$148.68
13	Elkay 10-14534-31-640 Cap, Push Button (Discontinued) Item #: 102890 Learn More	More Info
14	Elkay 10-15075-31-550 Stem, Push Button Item #: 102891 Learn More	$15.40
15	Elkay 31490C Fan Motor (Discontinued) Item #: 102518 Learn More	More Info
15	Elkay 31492C Fan Motor Item #: 129511 Learn More	List Price: $145.00 $130.50 You Save 10%
16	Elkay 10-42095-43-730 Fan Blade Item #: 102703 Learn More	$18.00
16	Elkay 30664C Fan Blade (Discontinued) Item #: 106616 Learn More	More Info
17	Elkay 70018C Nut - Hex 1/4 - 20 (Discontinued) Item #: 106370 Learn More	More Info
18	Elkay 40-26720-43-730 Fan Motor Bracket Item #: 102704 Learn More	$12.11
19	Elkay 66201C Drier Item #: 106072 Learn More	$30.00
19	Elkay 66202C Drier Item #: 106303 Learn More	$30.00
19	Elkay 66203C Drier- R134A ID .102 Item #: 106463 Learn More	$30.00
20	Elkay 66301C HEATX-FD5 Item #: 136484 Learn More	$41.11
20	Elkay 66229C HEATX-14 GAL Item #: 136474 Learn More	$40.64
20	Elkay 66257C HEATX- Item #: 136479 Learn More	$49.71
21	Elkay 31517C Cord-Power 115V (Discontinued) Item #: 129690 Learn More	More Info
21	Elkay 35887C CORD -POWER 115V Item #: 135977 Learn More	$40.01
22	Elkay 15005C Cartridge Retaining Nut Item #: 102460 Learn More	$8.34	More Info
23	Elkay 26860C Regulator Lever Item #: 106113 Learn More	$11.00
24	Elkay 26861C Pivot Bracket Item #: 106114 Learn More	$11.55
25	Elkay 26862C Regulator Retaining Bracket Item #: 106115 Learn More	$11.00
26	Elkay Cartridge Holder 50986C Item #: 102478 Learn More	$43.75
27	Elkay 61314C Valve Regulator Cartridge (Green Spring) Item #: 102539 Learn More	$40.83
28	Elkay 55996C Strainer Item #: 102483 Learn More	$27.50
29	Elkay 55860C Bracket-Regulator Item #: 134114 Learn More	$32.50
30	Elkay 40-14503-48-410 PANEL-RH PLT VINYL Item #: 134937 Learn More	$54.45
30	Elkay 40-14503-42-830 PANEL-RH SW Item #: 134936 Learn More	$107.63
31	Elkay 40-14504-48-410 PANEL-LH PLT VINYL Item #: 134939 Learn More	$54.45
31	Elkay 40-14504-42-830 PANEL-LH SW Item #: 134938 Learn More	$107.63
32	Elkay 75588C Drain Nut (Discontinued) Item #: 102739 Learn More	More Info
33	Elkay 55913C Adapter- Drain w/o Holes Item #: 102781 Learn More	$22.50
34	Elkay 56159C Plastic 1/4" Bubbler Nipple Item #: 102846 Learn More	More Info
35	Elkay 40-14505-48-410 Front Panel Item #: 126542 Learn More	$49.63
35	Elkay 40-14505-42-830 PANEL-FRONT (SS) Item #: 134940 Learn More	$92.97
36	Elkay 35844C Capacitor (Discontinued) Item #: 129512 Learn More	More Info
37	Elkay 56092C Drinking Fountain Plastic Tubing 1/4" x 48" Item #: 102487 Learn More	$15.40
38	Elkay 10-14528-31-560 SHRD -FAN Item #: 134688 Learn More	$23.15
39	Elkay 75589C Drain Gasket (Discontinued) Item #: 102740 Learn More	More Info
40	Elkay 40-06609-43-730 Mounting Bracket Item #: 102628 Learn More	$19.50	More Info
