Haws TWBS.EW Tempered Water Blending System 5 GPM (Discontinued)

Haws TWBS.EW Tempered Water Blending System 5 GPM (Discontinued)

Item #: 137349
|
Model: TWBS.EW
|
Manufacturer: Haws

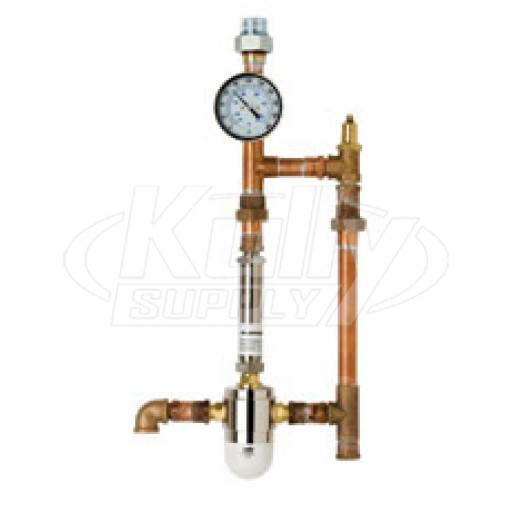

The Haws TWBS.EW Tempered Water Blending System 5 GPM is a prepackaged, fully engineered and tested system that mixes hot and cold water to supply tempered water to one eye/face wash or two eyewash fixtures requiring flow up to 5 gallons per minute (GPM). The system consists of a thermostatic mixing valve, a high temperature limit valve, a bypass valve, and an outlet temperature gauge.

This item is no longer available. The following item is a replacement for this item:

Haws TWBS.EWE Thermostatic Emergency Valve, Lead Free

Spec Sheet

Product Downloads

TWBS-EW-install

(Size: 81.1 KB)

TWBS.EW-

(Size: 211.3 KB)

TWBSEW-main

(Size: 147.8 KB)

Product Description
Specifications
Documents
Reviews (0)
Questions (0)

Product Description

Description

Unit is constructed of bronze, brass, copper, and stainless steel.
Ideal for areas where supply water temperatures falls below 60 degrees F while hot water supply is available.
Unit contains no electrical components, thus suitable for combustible atmospheres.
Maximum inlet pressure: 125 psi. Maximum inlet temperature: 180 degrees F. Recommended inlet temperature: 140 degrees F.
Pressure requirements: 50 psi to adequately supply water for eye/face wash.
Inlet and Outlet: 1/2” IPS. Dielectric outlet union provided.

Manufacturer Info

Haws manufactures award-winning drinking fountains, electric water coolers, hydration stations, and emergency equipment for a diverse set of industries. For over 103 years, Haws has been committed to bringing the highest quality water delivery and emergency equipment products to a wide variety of markets.
