Description

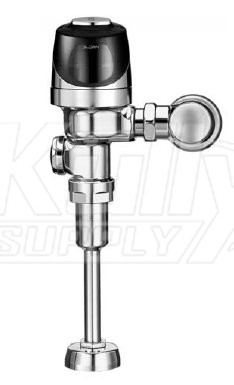

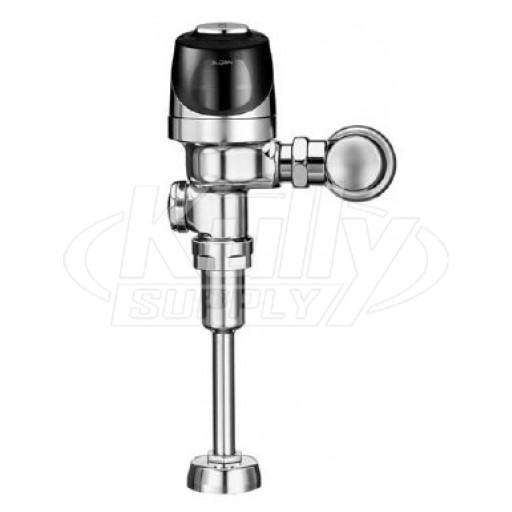

Quiet, Exposed, Chrome Plated Urinal Flushometer for either left or right hand supply with the following features:
• Pressure compensating cartridge assembly
• Synthetic rubber seals for chloramine resistance
• Latching Solenoid Operator
• Engineered Metal Cover with replaceable Lens Window
• User friendly three (3) second Flush Delay
• Courtesy Flush™ Override Button (optional)
• Four (4) Size AA Batteries factory installed
• “Low Battery” Flashing LED
• Infrared Sensor Range Adjustment Screw
• Initial Set-up Range Indicator Light (first 10 minutes)
• 3/4” I.P.S. Screwdriver Bak-Chek® Angle Stop
• Free Spinning, Vandal Resistant Stop Cap
• Adjustable Tailpiece
• Spud Coupling and Flange for 3/4” Top Spud
• Reduces water usage up to 80% over standard sensor urinal
• ADA Compliant Sloan ECOS® Battery Powered Infrared Sensor for automatic “No Hands” operation
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
• Sweat Solder Adapter with Cover Tube and Cast Wall Flange with Set Screw
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Stop Seat and Vacuum Breaker molded from PERMEX™ Rubber Compound for Chloramine resistance
