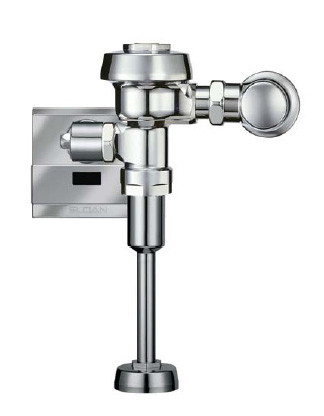

Sloan Royal 186 ES-S Sensor Flushometer

Description

Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer with the following features:

• PERMEX™ Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass • OPTIMA® EL-1500 Self-Adaptive Infrared Sensor with Indicator Light • “Walk By” Delay of Eight (8) Seconds Prevents Unintentional Flushes • User Friendly Three (3) Second Flush Delay • Non-Hold-Open True Mechanical Override • Non-Hold-Open Integral Solenoid Operator • Die Cast Sensor Cover Plate with no visible Fasteners (for 2-gang Electrical Box) • ¾” I.P.S. Screwdriver Bak-Chek® Angle Stop • Free Spinning Vandal Resistant Stop Cap • Adjustable Tailpiece • High Back Pressure Vacuum Breaker Flush Connection with One-Piece Bottom Hex Coupling Nut, Spud Coupling and Flange for ¾” Top Spud • Sweat Solder Adapter with Cover Tube and Cast Wall Flange with Set Screw • High Copper, Low Zinc Brass Castings for Dezincification Resistance • Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation • Flush Accuracy Controlled by CID™Technology • Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX™ Rubber Compound for Chloramine Resistance

Manufacturer Info

Sloan is the premier manufacturer of restroom products and systems for the commercial market. Sloan Flushometers, Sloan Faucets and other engineered systems provide owners with the ultimate in tenant and employee convenience – while saving water.
