Speakman SE-535 Pedestal-Mounted Eyewash

Description

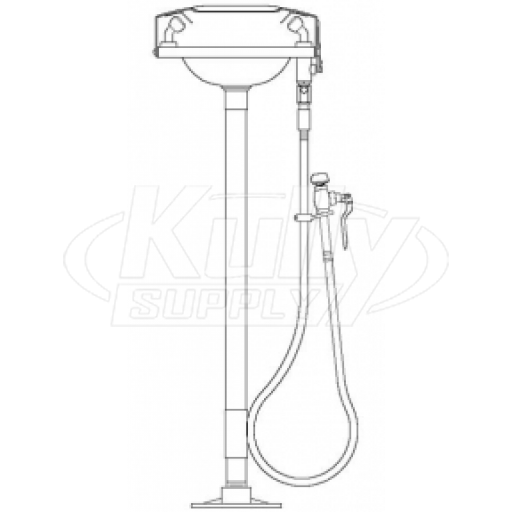

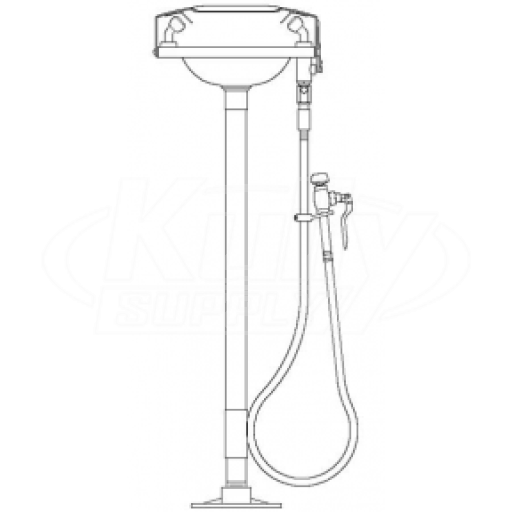

The Speakman SE-535 Pedestal-Mounted Eyewash (with Rectangular Stainless Steel Receptor and Drench Hose) features a stainless steel receptor, stay-open full flow ball valve activated by a stainless steel trigger bar, adjustable volume regulator, aerated spray outlets with individual adjustments for maximum performance, and a drench hose activated by a squeeze handle with an aerated spray nozzle. It is mounted on a galvanized steel pipe with a drain tee and floor flange.

• RECEPTOR: 300 Series Stainless Steel.
• SPRAYHEADS: (2) Brass, Chrome-Plated, Aerated.
• VALVE: 1/2” NPT Female Brass, Chrome-Plated.
• ACTIVATOR: Stainless Steel Trigger Bar.
• INLET: 1/2” NPT Female.
• PIPE: 1-1/4” IPS Galvanized Steel.
• FLOOR FLANGE: Brass Casting with (3) 17/32” Dia. Mounting Holes on 9” Dia. Bolt Circle, Spaced 120° Apart.
• WASTE: 1-1/4” NPT Female.
• FINISH: Safety Green.
• DRENCH HOSE: Valve: 3/8” NPT Female Brass, Chrome-Plated. Self-Closing Valve. Hose: 6’ Reinforced, 750 PSI Burst Pressure, Integral Hanger for Valve and Dust Cover.
• EMERGENCY SIGN: 7-7/8” x 7-7/8” Plastic Wall Sign.
