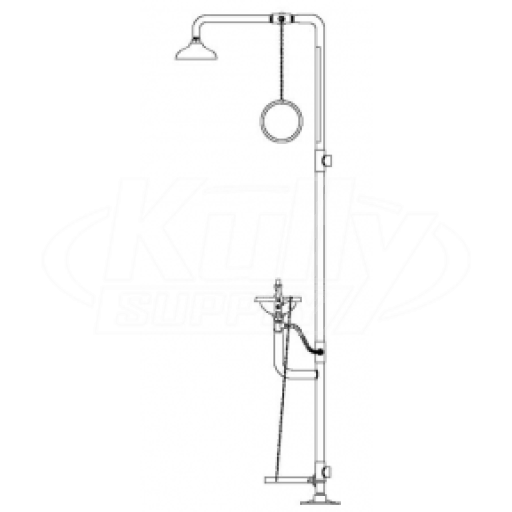

Speakman SE-610 Combination Drench Shower & Eyewash (with Rectangular Stainless Steel Receptor and Impeller Action Showerhead)

Speakman SE-610 Combination Drench Shower & Eyewash (with Rectangular Stainless Steel Receptor and Impeller Action Showerhead)

Item #: 137838
|
Model: SE-610
|
Manufacturer: Speakman

The Speakman SE-610 Combination Drench Shower & Eyewash (with Rectangular Stainless Steel Receptor and Impeller Action Showerhead) features a 1” NPTF self-closing full flow ball valve activated by a pull chain and ring. The eyewash is supplied with a 1/2” NPTF stay-open full flow ball valve activated by a trigger bar and/or foot pedal.

This Item Typically Ships in 1-2 Weeks

Find Parts

List Price: $1,312.00 $1,215.04 You Save 7%

Qty: ‹›

Product Downloads

SE610-main

(Size: 110.5 KB)

SE610-partsbd

(Size: 1.5 MB)

Product Description
Specifications
Documents
Related Products
Reviews (0)
Questions (0)

Product Description

Description

SHOWERHEAD: 8” Dia. CYCOLAC Yellow Plastic.
FLOW CONTROL: Internal 20 GPM Regulator.
VALVE: 1” NPT Female Brass, Chrome-Plated. Full Flow Self-Closing Valve.
ACTIVATOR: 8” Dia. Stainless Steel Ring.
STANCHION: 1-1/4” IPS Steel Piping with Brass Fittings.
INLET & WASTE: 1-1/4” NPT Female.
FLOOR FLANGE: Brass Casting with (3) 17/32” Dia. Mounting Holes on 9” Dia. Bolt Circle, Spaced 120° Apart.
FINISH: Safety Green Paint.
EYEWASH: SE-505
EMERGENCY SIGN: 7-7/8” x 12” Plastic Wall Sign.
