Description

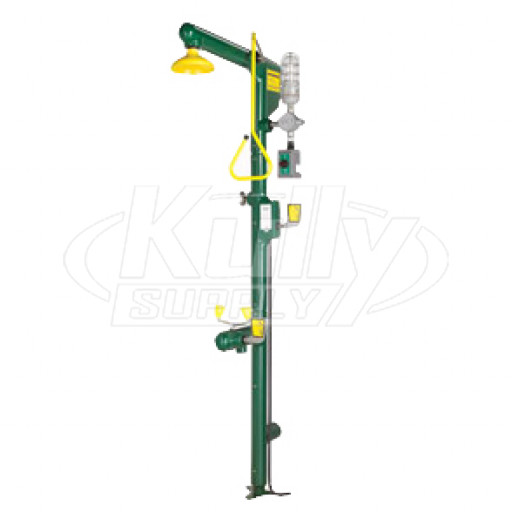

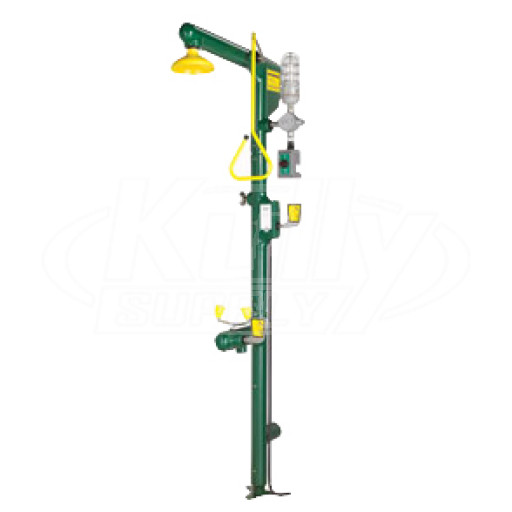

The Speakman SE-7000 Freeze-Protected Floor-Mounted Combination Drench Shower & Eye/Face Wash is wrapped with heat trace cable and insulation and jacketed with an easy access ABS shell to protect it to -50 degrees F. The eye/face wash features dual aerated spray outlets with automatic flow controls and flip top dust covers. The impeller action shower is activated by a high visibility yellow pull rod. An integral freeze valve protects the unit from freezing in case of a power outage.
- Showerhead: 8” Dia. Cycolac Yellow Plastic.
- Flow Control: Internal 20 GPM Regulator
- Freeze Valve: Activates Automatically Below 40 Degrees F.
- Valve: 1” NPTF Chrome-Plated Brass Stay-Open Ball Valve.
- Activator: Powder-Coated High Visibility Yellow Aluminum Triangular Pull Rod.
- Internal Stanchion: 1” IPS Galvanized Steel Pipe.
- Inlet: 1” NPT Male, Bottom Supply.
- Performance: 20 GPM @ 30 PSI
- Finish: Dura-Jade Green ABS Plastic.
Eye/Face Wash
- Sprayhead: (2) Yellow ABS Plastic Spray Outlets with Automatic Flow Control and Flip Top Dust Covers.
- Valves: ½” NPT Brass, 3-Way Chrome-Plated Ball Valve.
- Performance: 3.82 GPM @ 30 PSI
- Activator: Stainless Steel Push Handle.
Electric
- Heating Tape: Self-Limiting Parallel Resistance Cable with Braided Metal Shield.
- Thermostat: Preset, Hermetically Sealed Single Pole Contact Switch. Temperature Range 60 to 70 degrees F.
- Insulation: Closed Cell Rubber Foam.
- Junction Box: NEMA 4 Water Tight and Dust Tight, Suitable for Indoor or Outdoor Locations.
- Power Supply: 120 VAC, 60 Cycle, Single Phase.
- Electrical Classification: Class 1 Division 2 GRP. B, C, D.
- Ground Fault Protection: Installation will require minimum 30 mA GFPD.
Manufacturer Info
Speakman faucets can be found in major landmarks and institutions all over America. Speakman safety products such as booth shower and portable eyewash stations are also used at industrial and medical centers nationwide.
