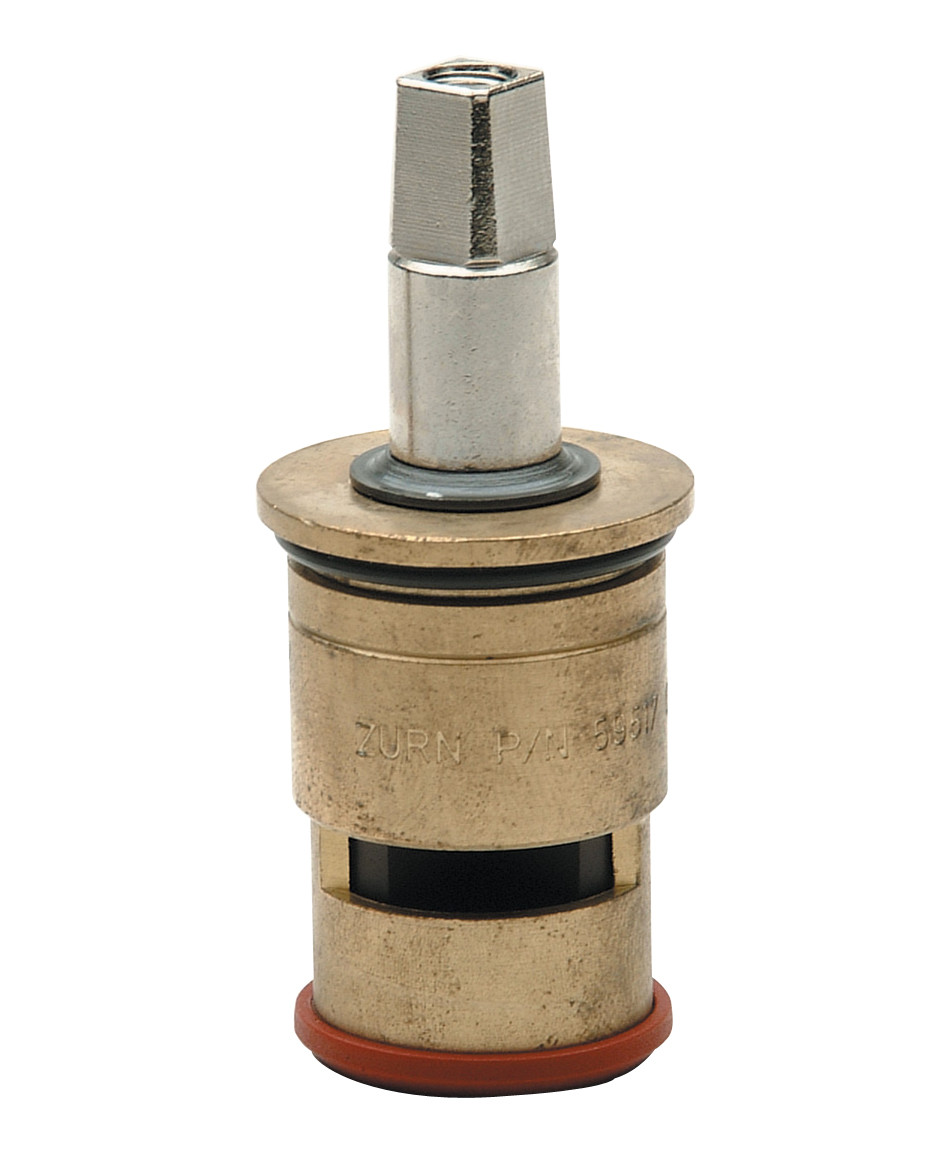

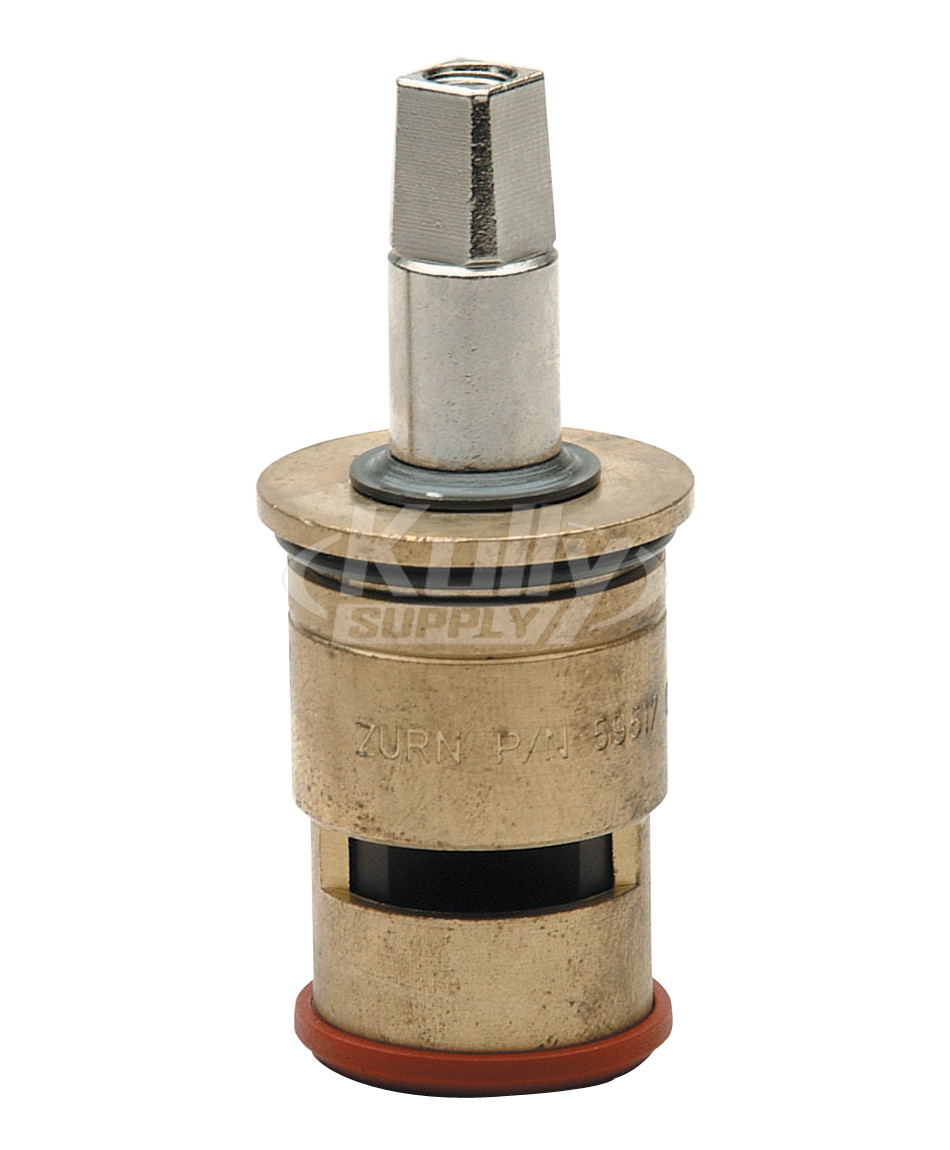

Zurn 59517005 Short Cold Ceramic Cartridge

Items Included

• Fully-Assembled Ceramic Cartridge
• Red Base Gasket (attached to cartridge)
• Cartridge O-Ring

Items NOT Included

• Handle
• Handle Screw

Description

This Zurn 59517005 Short Cold Ceramic Cartridge fits Zurn quarter-turn faucets with the an exposed retaining nut. Replacing this cartridge, resolves water leaks from the handle as well as the spout of the faucet.

Features and Benefits

• Fully Assembled Cartridge – Quick and Easy Installation.
• Ceramic Disks – Years of Hassle-Free Operation
• Positive Stop Shutoff – Prevent Users from Over-Turning the Handles
• Precision Machining – Handles Turn Effortlessly
• Square Broach – Handle Aligns Perfectly
• Top Flange Design – Locks Cartridge and Prevents Handle Leaks

• Added Bonus- This cartridge will also replace old-style Quaturn Cartridges in Chicago Faucets.

Operation and Maintenance

Troubleshooting

Problem:

• 1. Water continuously running out of the spout.
• 2. Water is leaking at the retaining nut.

Solution:

• 1. Replace the hot or cold Cartridge. – See helpful hint below to help determine which cartridge needs to be replaced.
• 2. Replace the hot or cold Cartridge, depending which side is leaking.

Helpful Hint – Shut off either the hot or the cold water supply. This will help to determine which cartridge is leaking and needs to be replaced.

Removal 1. Shut off the water to the faucet. 2. Loosen the handle nut and pull up on the cartridge to remove from the faucet body. 3. Remove the temperature index and unthread the set screw from the handle.

Installation 1. Place replacement cartridge into the faucet body. 2. Tighten the cartridge nut onto the valve body. 3. Place the handle on top of the cartridge, use the set screw to attach the handle to the cartridge and cover set screw with temperature index.

• These cartridges only turn a quarter turn. Therefore, the handles should turn straight out at you when faucet is in the “on/open” position.

Product Message

This is the cold cartridge, for the HOT short ceramic cartridge please visit:

• Short Hot Ceramic Cartridge

For the Long Ceramic Cartridge – Faucets with the decorative escutcheon, please visit:

• Long Cold Ceramic Cartridge

• Long Hot Ceramic Cartridge

Manufacturer Info

Zurn manufactures one of the largest plumbing products packages in the world. This wide variety of products and its commitment to quality make Zurn a leading manufacturer of plumbing products and accessories.
